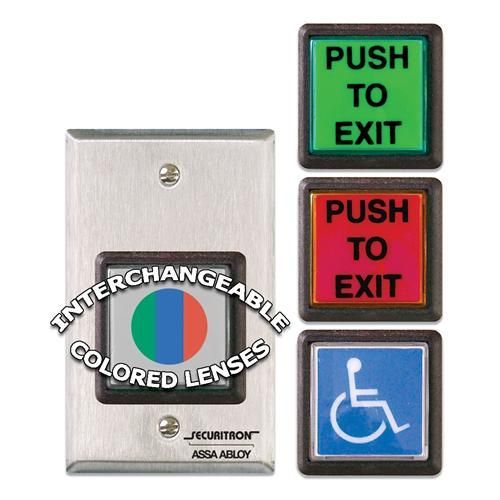

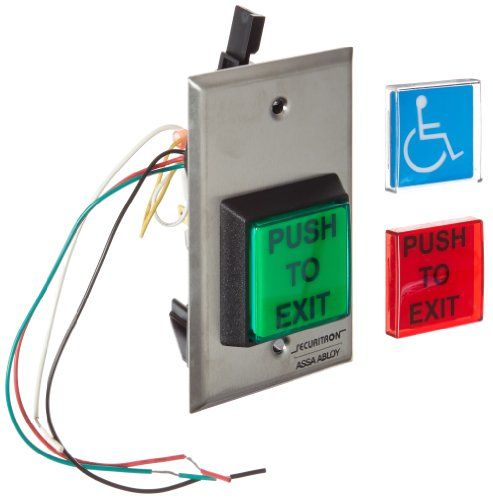

2" SQUARE ILLUMINATED PUSH/EXIT SWITCH WITH ELECTRONIC TIMER (THREE COLORS)
Featured Products
2" SQUARE ILLUMINATED PUSH/EXIT SWITCH WITH ELECTRONIC TIMER (THREE COLORS)
- Buy 2 for $140.00 each and save 3%
- Buy 3 for $135.00 each and save 7%
- Buy 5 for $130.00 each and save 10%
The XMS is a passive infrared motion detector specifically designed to release a magnetic lock from the inside for free egress. Unlike burglar alarm type detectors, the XMSìhas special features appropriate to this use. The lock control function is fail safe so that the magnetic lock will safely release if power is cut to the detector. A relay is also present to send a REX (request to exit) signal to an access control system (if one is present) and therefore shunt an alarm report. A time extension feature avoids the problem of the unit resetting if a person momentarily stops moving just before exit. Tight control of the exit detection pattern allows maximum security from the outside and avoidance of inadvertent activation from the inside.
Since egress from a magnetically locked door can be a safety issue, make sure you are complying with local building codes. Contact your building and/ or fire prevention department.
Features:
- Emergency Exit Buttons offer additional safety, as required by code, for possible malfunction of motion exit sensor
- Mounted next to door
- Momentarily pressing the button releases door for 30 seconds
- Retriggerable
- Single Gang or Narrow Stile
- SPST 3 Amp wet N/C contacts
- Operates on 12 or 24 VDC (must be same voltage as the installed lock)
- For indoor use only
- EEB2 includes switchable green, red and blue ADA lenses
- EEB3N includes switchable green and red lenses
- UL Listed
Installation and service in North Carolina only.
Check out the Mobotix Cameras! Preprogramming can be done before shipping to site.
Part # | SN-EEB2 |
---|---|
MFR | SECURITRON |
The XMS is a passive infrared motion detector specifically designed to release a magnetic lock from the inside for free egress. Unlike burglar alarm type detectors, the XMSìhas special features appropriate to this use. The lock control function is fail safe so that the magnetic lock will safely release if power is cut to the detector. A relay is also present to send a REX (request to exit) signal to an access control system (if one is present) and therefore shunt an alarm report. A time extension feature avoids the problem of the unit resetting if a person momentarily stops moving just before exit. Tight control of the exit detection pattern allows maximum security from the outside and avoidance of inadvertent activation from the inside.
Since egress from a magnetically locked door can be a safety issue, make sure you are complying with local building codes. Contact your building and/ or fire prevention department.
