BOSE POWERSHAREX PSX4804D ADAPTABLE 4800 WATT POWER AMPLIFIER
Featured Products

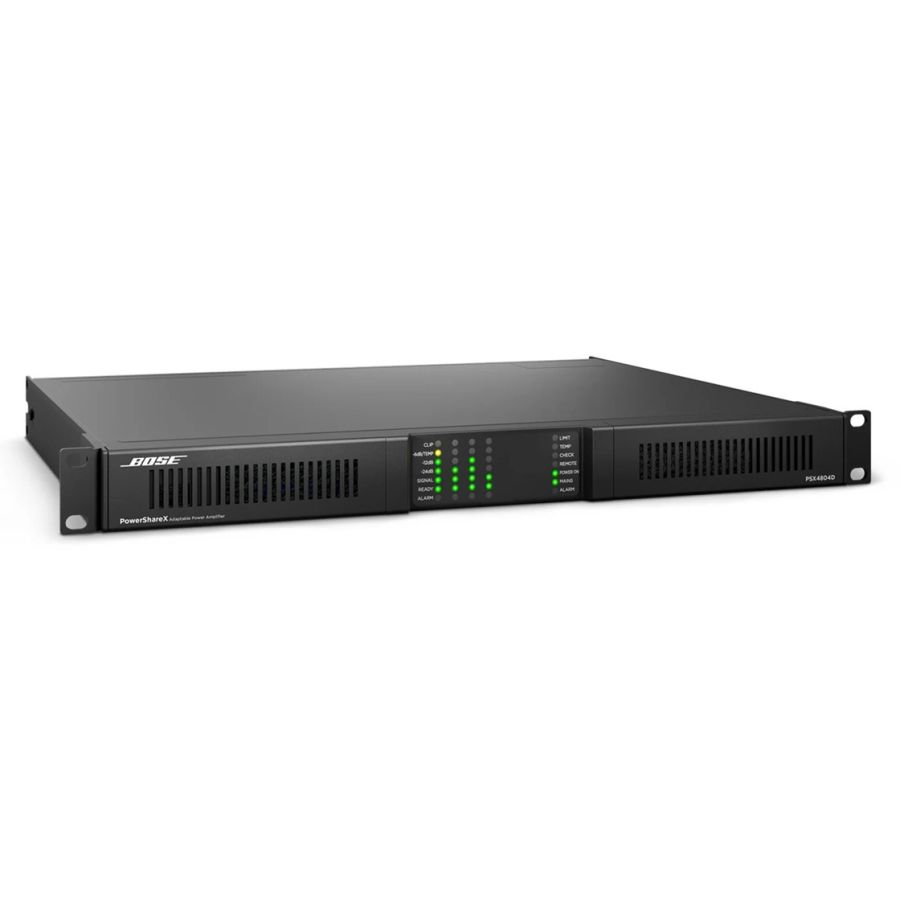

BOSE POWERSHAREX PSX4804D ADAPTABLE 4800 WATT POWER AMPLIFIER
SPECIAL ORDER
Bose PowerMatch PM8500N Configurable Power Amplifier
PowerShareX PSX4804D is a four-channel, 4800-watt smart amplifier designed for use with Bose Professional installed sound systems. Onboard DSP gives you instant access to optimized loudspeaker presets via ControlSpace Designer software with easy ecosystem integration across Bose Professional processors, loudspeakers, and controllers. Design, configuration, installation, and operation become simpler — so you can get the job done and move on to the next.
Maximum Rated Power 3000 W at 2 Ω, 4 Ω / 2400 W at 8 Ω, 70V, 100V
Rated Power, Symmetrical 1500 W per channel at 2 Ω / 1200 W per channel at 4 Ω, 8 Ω, 70V, 100V
Features:
Power-sharing technology: Dynamically allocates power evenly or asymmetrically across outputs without having to bridge channels or lose channel count when powering Bose Professional loudspeakers.
Bose Professional certified presets and ControlSpace Designer integration: Delivers the best performance, loudspeaker protection, and visibility of the entire Bose Professional system from a single UI for easy design, configuration, control, and monitoring.
Proven Powersoft reliability: Ensures the systems operate every day, mitigating non-billable service calls.
Flexible outputs: Capable of handling either low-impedance (2, 4, 8Ω) or high-impedance (70, 100V) loudspeaker loads.
Built-in Dante audio: Supports up to 4 digital input channels from a Dante network eliminating the requirement of ordering and installing an accessory network card.
4 analog inputs: Provide line-level source connections.
PowerShare Design Tool: A downloadable design tool that allows system designers the ability to choose their PowerShare amp and simulate the power-sharing capability that, in some cases, can lead to a lower-power model requirement and cost savings.
GPIO connections: Provide a remote level, on/off, and alarm triggers.
Network monitoring: Provides real-time system performance data, minimizing downtime, guesswork, and unnecessary service calls.
Rack-friendly 1RU design: That is only 358 mm (14.1 in) deep eliminating the need for oversized racks.
EN 54-16 compliant for reliable use in VA/PAVA systems with other compliant system components.
Applications:
- Commercial installations
- Houses of worship
- Performing arts
- Corporate
- Hotels
- Retail/Restaurants
- Education
- Government
- Sports & Fitness
Included in Package
- (1) Bose PowerShareX PSX4804D Power Amplifier
- (1) IEC Power Cord
- (1) 8-pin Euroblock Connector (for output)
- (3) 12-pin Euroblock Connectors (for input)
- (1) 4-pin Euroblock Connector (for GPIO)
- (1) Installation Guide
Do you need Service? CommGear sells it. Install and service at an additional charge.
| Part # | 8765990-300 |
|---|---|
| MFR | BOSE |
