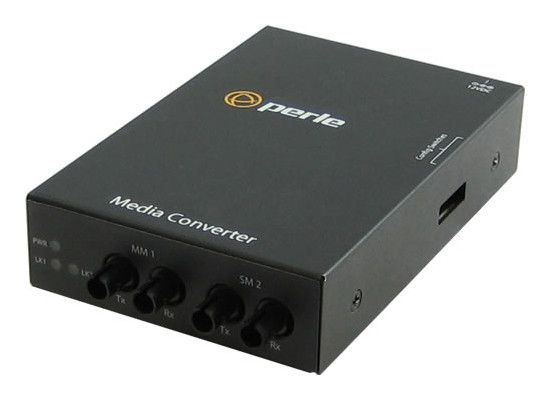

PERLE S-1110MM-S2ST10 - MM MEDIA CONVERTER

Multi-Mode

PERLE S-1110MM-S2ST10 - MM MEDIA CONVERTER

Part # 05060244
In Stock
$1,089.00
  • Buy 2 for $1,080.00 each and save 1%
- +

Perle S-1110-S2ST10 - Media Converter

S-1000MM-S2ST10 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter.

1000Base-SX 850nm multimode (ST) [550 m/1804 ft.] to 1000Base-LX/LH 1310 nm single mode (ST) [10 km/6.2 miles].

Specifications:

General

  • Device Type: Media converter
  • Form Factor: External
  • Localization: United States

Networking

  • Connectivity
  • Technology: Wired
  • Cabling Type: 1000Base-LX, 1000Base-SX, 1000Base-LH
  • Data Link Protocol: Gigabit Ethernet
  • Data Transfer Rate: 1 Gbps
  • Optical Wave Length: 850 nm / 1310 nm
  • Max Transfer Distance: 6.2 miles
  • Status Indicators: Link activity, power, receive
  • Features: FiberAlert, auto-negotiation, VLAN support, half duplex mode, full duplex mode
  • Compliant Standards: IEEE 802.3, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x

Expansion / Connectivity

  • Interfaces: 1 x Ethernet 1000Base-SX - ST multi-mode female x 2 ¦ 1 x Ethernet 1000Base-LX/1000Base-LH - ST single mode female x 2

Miscellaneous

  • Rack Mounting Kit: Optional
  • MTBF: 432,138 hours
  • Compliant Standards: CISPR 22 Class A, EN 60950, EN 61000-3-2, EN55024, EN55022 Class A, RoHS, UL 60950-1, WEEE, FCC Part 15 A, REACH, EN 60825-1

Power

  • Power Device: External power adapter
  • Voltage Required: AC 120/230 V
  • Power Consumption Operational: 2.5 Watt

Dimensions & Weight

  • Width: 3.1 in
  • Depth: 4.7 in
  • Height: 1 in
  • Weight: 10.58 oz

Manufacturer Warranty

  • Service & Support: Limited lifetime warranty
  • Service & Support Details: Limited warranty - lifetime

Environmental Parameters

  • Min Operating Temperature: 32 °F
  • Max Operating Temperature: 122 °F
  • Humidity Range Operating: 5 - 90% (non-condensing)

Learn More

1 year Warranty.

Do you need Patch Cables?  CommGear sells them.  Install and service at an additional charge.

Additional Information
More Information
Part # 05060244
MFR PERLE
Details

Perle S-1110-S2ST10 - Media Converter

S-1000MM-S2ST10 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter.

1000Base-SX 850nm multimode (ST) [550 m/1804 ft.] to 1000Base-LX/LH 1310 nm single mode (ST) [10 km/6.2 miles].

Specifications:

General

  • Device Type: Media converter
  • Form Factor: External
  • Localization: United States

Networking

  • Connectivity
  • Technology: Wired
  • Cabling Type: 1000Base-LX, 1000Base-SX, 1000Base-LH
  • Data Link Protocol: Gigabit Ethernet
  • Data Transfer Rate: 1 Gbps
  • Optical Wave Length: 850 nm / 1310 nm
  • Max Transfer Distance: 6.2 miles
  • Status Indicators: Link activity, power, receive
  • Features: FiberAlert, auto-negotiation, VLAN support, half duplex mode, full duplex mode
  • Compliant Standards: IEEE 802.3, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x

Expansion / Connectivity

  • Interfaces: 1 x Ethernet 1000Base-SX - ST multi-mode female x 2 ¦ 1 x Ethernet 1000Base-LX/1000Base-LH - ST single mode female x 2

Miscellaneous

  • Rack Mounting Kit: Optional
  • MTBF: 432,138 hours
  • Compliant Standards: CISPR 22 Class A, EN 60950, EN 61000-3-2, EN55024, EN55022 Class A, RoHS, UL 60950-1, WEEE, FCC Part 15 A, REACH, EN 60825-1

Power

  • Power Device: External power adapter
  • Voltage Required: AC 120/230 V
  • Power Consumption Operational: 2.5 Watt

Dimensions & Weight

  • Width: 3.1 in
  • Depth: 4.7 in
  • Height: 1 in
  • Weight: 10.58 oz

Manufacturer Warranty

  • Service & Support: Limited lifetime warranty
  • Service & Support Details: Limited warranty - lifetime

Environmental Parameters

  • Min Operating Temperature: 32 °F
  • Max Operating Temperature: 122 °F
  • Humidity Range Operating: 5 - 90% (non-condensing)

Learn More

1 year Warranty.

Do you need Patch Cables?  CommGear sells them.  Install and service at an additional charge.
