WEBOOST OMNI WIDEBAND 9dBi 617-3800 MHz ANTENNA
Antennas
WEBOOST OMNI WIDEBAND 9dBi 617-3800 MHz ANTENNA

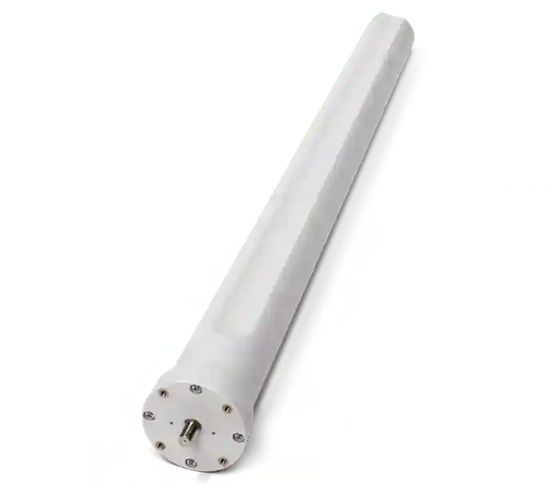

WeBoost Omni Wideband 9dBi 617-3800 MHz Type-N Connectors Antenna
4G & 5G / 10,000 sq.ft.

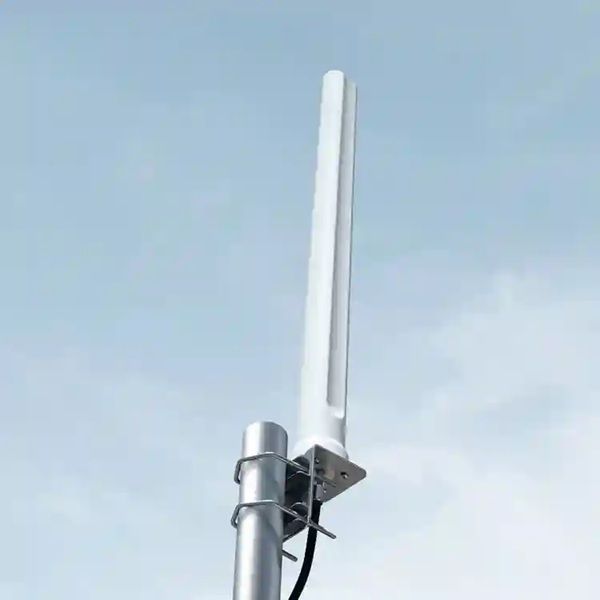

25” external omni-directional antenna continuously scans 360° to capture the strongest signal. Up to 4X More Powerful. A new, 25” exterior antenna with 9dBi higher gain covers a large area and reaches greater distances to capture more signal in weak or inference-prone spaces. 360º Continuous Scanning. The updated omni-directional exterior antenna captures and focuses more signal from any tower in any direction. Rugged Exterior Antenna. Weather-resistant materials are designed to withstand harsh environments for long term durability and consistent performance. IP 65 Compliant with a -40° F and 176° F temperature rating.
Features:
- High gain omni-directional antenna for maximum signal coverage.
- Supports frequency bands from 617-698 MHz to 3.5 GHz 5G bands.
- Future-proof wideband operation for evolving technology standards.
- Robust, weather-resistant design with IP65 rating for durability.
- Optimized for various applications, including FWA, IoT, and M2M.
- Enhances 4G/LTE and 5G reception for better connectivity in areas with weak signals.
- Compact design suitable for both indoor and outdoor installations.
Specifications:
- Frequency Bands: 617-960 MHz, 1427-1517 MHz, 1710-2700 MHz, 3400-3800 MHz.
- Peak Gain: Up to 9 dBi for optimal signal boost.
- VSWR: Less than 2.5:1 for minimal signal loss.
- Polarization: Vertical.
- Impedance: 50 Ohms.
- Connector: N-Type (Female).
- Power Handling: Maximum 10 Watts.
- Dimensions: 25" x 2.7" (635 mm x 71 mm).
- Operating Temperature: -40°F to 176°F (-40°C to 80°C).
- Wind Resistance: Rated up to 100 mph (160 kph).
2 year Warranty.
Do you need Cabling? CommGear can install and service at an additional charge.
| Part # | 310001 |
|---|---|
| MFR | WILSON |
