Wilson Enteprise 4330 Mobile Kit

Designed for use in large commercial buildings, hospitals, warehouses, and office complexes that require consistent, reliable cellular signal coverage.

It is particularly well-suited for environments with fluctuating signal strength or strong outside signals that can cause overload in traditional systems. The XDR technology ensures continuous operation, even in signal-rich environments.

Enhanced 4G LTE and low-band 5G / 100,000 sq.ft.

EXPECTED INDOOR COVERAGE

• 20,000 sq. ft. with 1-2 bars(-100 dB) of outside signal
• 60,000 sq. ft. with 3-4 bars (-90 dB) of outside signal
• 100,000 sq. ft. with 5 bars of outside signal

The WilsonPro Enterprise 4330 is a high-performance, in-building cell signal amplifier designed to enhance cellular coverage for large commercial environments. Supporting both 4G LTE and 5G networks, the 4330 provides reliable signal strength across up to 100,000 square feet. Ideal for office buildings, hospitals, and multi-story complexes, this system improves voice quality, reduces dropped calls, and delivers faster data speeds in areas where signal penetration is a challenge.

Features:

• Wideband & Channelized Mode: Offers the flexibility to amplify entire frequency bands or specific sub-blocks for precise signal optimization, reducing interference and improving coverage quality.
• High Uplink & Downlink Power: With up to 26 dBm uplink and 17 dBm downlink power per port, the Enterprise 4330 provides strong, consistent cellular coverage across large spaces and multi-floor buildings.
• Split Mode Capability: Allows for the use of multiple outdoor antennas targeting different cell towers, maximizing indoor signal distribution and enhancing overall system performance.
• Cloud-Based Monitoring: Integrated WilsonPro Cloud access allows for remote monitoring and management, ensuring system uptime and providing real-time performance tracking via LTE or Ethernet.
• Universal Carrier Compatibility: The Enterprise 4330 works with all major U.S. and Canadian carriers, including AT&T, Verizon, T-Mobile, and smaller regional providers, ensuring broad coverage for all devices.
• LCD Touchscreen: A user-friendly color LCD touchscreen provides quick access to system configuration, performance monitoring, and adjustments.

Extended Dynamic Range (XDR) Technology

XDR technology (Extended Dynamic Range) is a core feature of the Enterprise 4330, designed to prevent the amplifier from shutting down due to strong incoming signals. In areas with powerful external signals, traditional amplifiers can experience signal overload, resulting in system shutdown or reduced performance.

XDR automatically adjusts the amplifier’s gain to handle these strong signals without interrupting service, ensuring continuous, reliable operation. This feature is especially beneficial in urban environments or locations close to cell towers, where signal overload is more likely. XDR keeps the system running smoothly, delivering consistent coverage and preventing costly downtime.

How it works

1 - OUTDOOR ANTENNA

The outdoor antenna receives and transmits signal to nearby cellphone towers. Outdoor antennas can be either directional or omni-directional.

2 - CELLULAR AMPLIFIER

The amplifier (or "repeater") boosts the signal coming to and from and going to the cell phone tower. The "gain" of the amplifier describes how strong the amplification is - you'll see that word scattered across our product pages.

3 - INDOOR ANTENNA

The indoor antenna rebroadcasts the signal inside the building. Some kits have more than one indoor antenna to help distribute the signal.

CARRIER COMPATIBILITY:

Compatible with all 2G, 3G, and 4G services and cellular-enabled devices such as smartphones, iPhone, Galaxy, tablets, iPad, and others.

The WilsonPro Enterprise 4330 package includes all essential components for easy installation and optimal performance:

• Qty. (1) Main Amplifier Unit
• Qty. (1) Wideband Directional Outside Antenna (314411)
• Qty. (4) Dome Inside Antennas (304412)
•

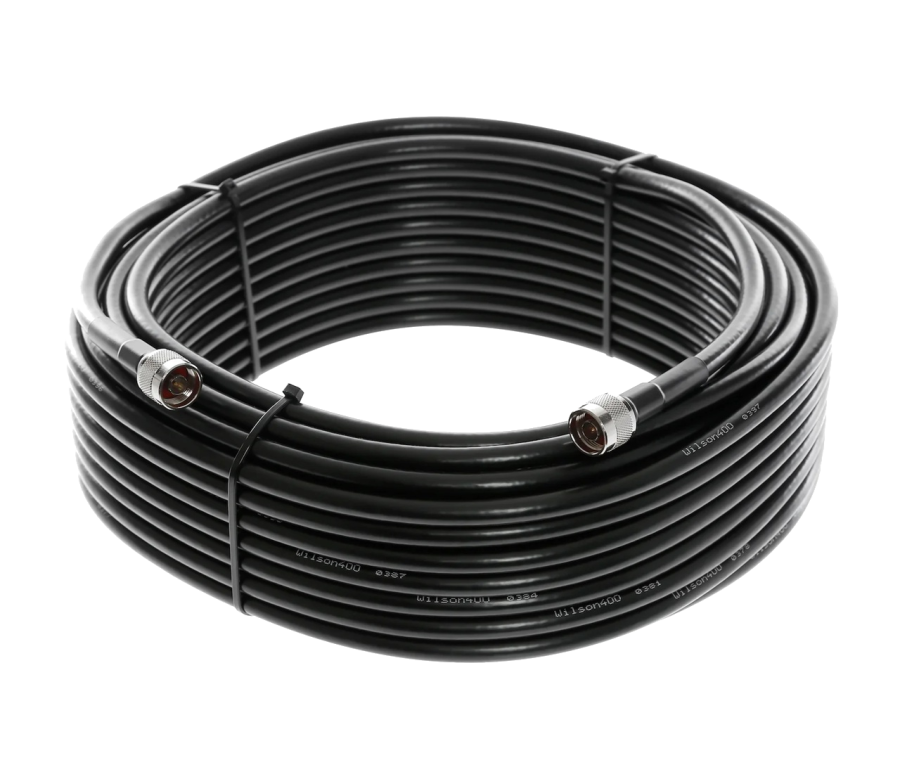

• Qty. (5) 100 FT. Wilson400 Cables (952300)
• Qty. (1) 2 FT. Wilson400 Cable (952302)
• Qty. (1) 50 Ohm Lightning Surge Protector (859902)

Kit

Specs.

Learn More

Installation

3 year Warranty.

Do you need Cabling?  CommGear can install and service at an additional charge.
