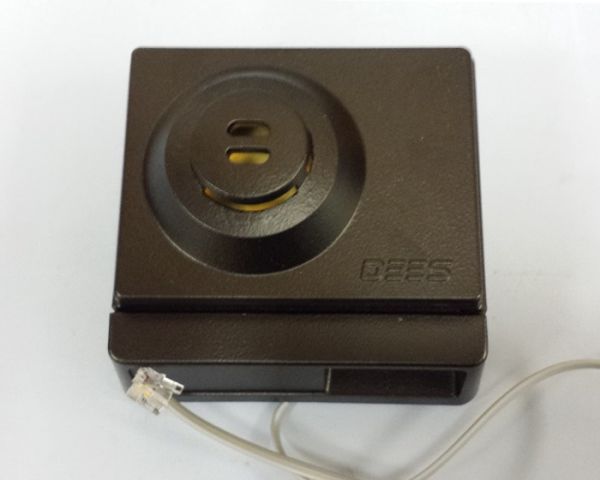

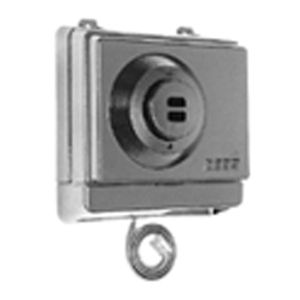

The Stinger Ringer cuts through the noise of any environment with a powerful 110 dBA. Its intense signal is transmitted in all directions and reaches every corner of an industrial location or home. The Stinger, Model 198, operates directly from Central Office power. It has a modular plug that connects right into a standard telephone wall jack. This unit is equipped with a three position volume switch (hi - med - low).  The unit is housed in a rugged, light weight aluminum, weatherized case. The terminal strip is protected by a cover making either ringer ideal for indoor or outdoor installations.

Application:

If you work in a noisy or large area where the phones just cannot be heard, the Stinger Ringer is the ideal solution for you. Car lots, lumber yards, warehouses, manufacturing plants, fire halls and farms would benefit from the Stinger Ringer.The unit is housed in a rugged, light-weight aluminum weatherized case. The terminal strip is protected by a cover making the ringer ideal for indoor or outdoor installations.

The Stinger 24, Model 198, operates from 24 VDC and a dry set of contacts. It’s ideal for use as a common audible or night bell on Key System installations. This unit is equipped with a volume control for continuous increase or decrease of volume.

Model 198 Stinger Ringer:

• Easy to install
• Output 110 dBA at one meter
• 24 VDC powered
• Adjustable volume control
• Ideal for indoor and outdoor use
• Housed in a rugged, light weight aluminum case

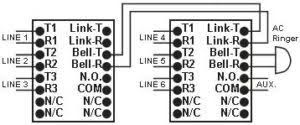

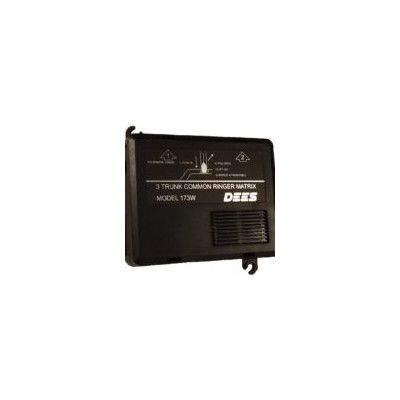

Model 173W Common Ringer:

• Multiple line grouping
• No external power required
• Units can be ganged together for greater line capacity
• Auxiliary relay contacts available

198

173W

1 year Warranty.

Do you need Cabling?  CommGear provides it.  Install and service at an additional charge.

Replaces Model 196.
