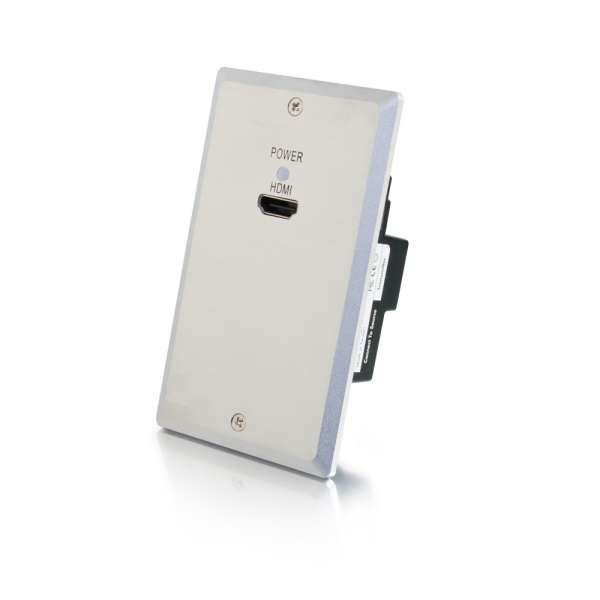

HDMI HDBASET Over CAT-5 Extender Single Gang Wall Plate Transmitter - Aluminum.
The HDMI over Cat5 allows HDMI audio/video signals to be extended over a single Cat5/Cat5e/Cat6 unshielded twisted pair cable up to 300ft at a 1080p resolution. This solution is compatible with any operating system and is truly plug and play with no drivers or software required. The transmitter and receiver are available in either a wall plate or box form factor and are interoperable allowing this solution to meet the needs of the installation environment. In addition, this solution utilizes TruChoice™ power, which allows power to be supplied over the Cat5 cable to both the transmitter and receiver from a single power adapter placed at either the transmitter or the receiver end of the solution. HDBaseT technology supports HDCP and allows the Extended Display Identification Data (EDID) signals, i.e. communication of the display’s capabilities, to pass through the extension solution ensuring that the content from the source is sent at the optimal resolution for the display. Built-in power surge protection and high ground loop immunity ensure high performance signal extension.
- Extend HDMI up to 300ft at a 1080p resolution
- Utilizes a single category cable for extension
- HDBaseT technology supports EDID pass through
- TruChoice Power allows for power at transmitter or receiver end
