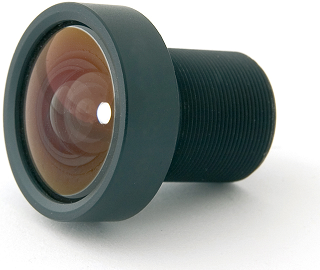

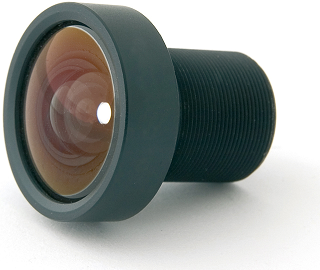

MOBOTIX L65 LENS FOR D1x/M2x/D2x (NEW)
Featured Products
MOBOTIX L65 LENS FOR D1x/M2x/D2x (NEW)
Lenses from Super Wide Angle (90°) to Tele (15°) for all MOBOTIX cameras.
|
Lens |
Type |
Angle |
Focal Length |
Image width |
|
[H x V] |
≙ 35mm equivalent |
[in a distance of 10 m] |
||
|
L22 |
Super Wide Angle 90° |
90° x 67° |
f = 4 mm (≙ 22 mm) |
20 m x 13.3 m |
|
L32 |
Wide Angle 60° |
60° x 45° |
f = 6 mm (≙ 32 mm) |
11.5 m x 8.2 m |
|
L43 |
Wide Angle 45° |
45° x 35° |
f = 8 mm (≙ 43 mm) |
8.2 m x 6.1 m |
|
L65 |
Tele 31° |
31° x 23° |
f = 12 mm (≙ 65 mm) |
5.5 m x 4 m |
|
L135 |
Tele 15° |
15° x 11° |
f = 25 mm (≙ 135 mm) |
2.6 m x 1.9 m |
Note: In the color sensors, the infrared CUT filter is NOT in the lens, but rather already installed in the lens casing in the camera.
Installation and service in North Carolina only. Preprogramming can be done before shipping to site.
| Part # | MX-OPT14-L65 |
|---|---|
| MFR | MOBOTIX |
Lenses from Super Wide Angle (90°) to Tele (15°) for all MOBOTIX cameras.
|
Lens |
Type |
Angle |
Focal Length |
Image width |
|
[H x V] |
≙ 35mm equivalent |
[in a distance of 10 m] |
||
|
L22 |
Super Wide Angle 90° |
90° x 67° |
f = 4 mm (≙ 22 mm) |
20 m x 13.3 m |
|
L32 |
Wide Angle 60° |
60° x 45° |
f = 6 mm (≙ 32 mm) |
11.5 m x 8.2 m |
|
L43 |
Wide Angle 45° |
45° x 35° |
f = 8 mm (≙ 43 mm) |
8.2 m x 6.1 m |
|
L65 |
Tele 31° |
31° x 23° |
f = 12 mm (≙ 65 mm) |
5.5 m x 4 m |
|
L135 |
Tele 15° |
15° x 11° |
f = 25 mm (≙ 135 mm) |
2.6 m x 1.9 m |
Note: In the color sensors, the infrared CUT filter is NOT in the lens, but rather already installed in the lens casing in the camera.
Installation and service in North Carolina only. Preprogramming can be done before shipping to site.
