MOBOTIX MX-A-ETP1A-2601-SET (NEW)
Featured Products
MOBOTIX MX-A-ETP1A-2601-SET (NEW)
Mobotix Mx-A-ETP1A-2601-SET.
Mx-ETP1A-2601-SET Complete set consisting of two two-wire transmitting and receiving units - Transmission of Ethernet and PoE+ Power supply via two-wire line according to IEEE1901 - Requires additional power supply (e.g. Mx-A-ETP1A-2601-POW).
Key Features:

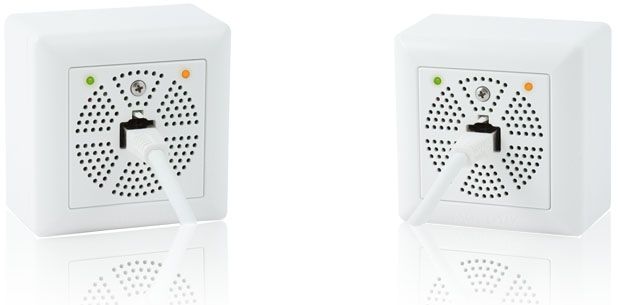

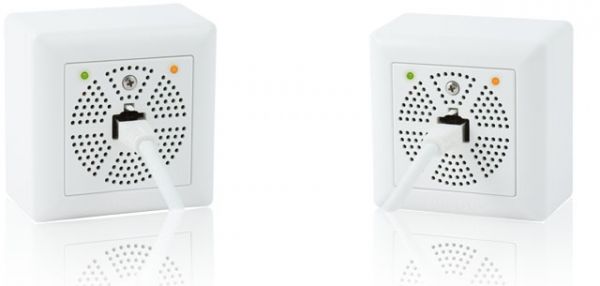

- Mx-ETP1A-2601-SET Complete set consisting of transmitter (Tx) and receiver (Rx) for implementing an Ethernet transmission link via two-wire line
- Transmission of Ethernet and PoE+ power supply via two-wire line according to IEEE1901
- Simple connection of 10/100 Mbit Ethernet end devices
- Max. 95 Mbps transmission bandwidth,
- Range up to 600m for data / 300m for PoE (depending on the quality of the two-wire line)
- 128 bit AES network data encryption
- Power supply of transmitter (Tx) and receiver (Rx) as well as terminal device via PoE+ network switch or via external power supply 56VDC / 1.2A (not included in delivery)
- Connected end devices are supplied via PoE switch IEEE802.3af (PoE), IEEE802.3at (PoE+), UPoE up to 60W (requires ext. power supply).
- Status LED (data, power supply, data link, PoE)
- Integrated overvoltage protection (IEC 61000-4-5 4kV (1.2 / 50us), 2kA (8 / 20us))
- Supply voltage: Tx: T-Linx or DC12V~57V; Rx: PoE Switch or DC48V~57V
- Operating temperature: -20 to +60 °C
- Dimensions Rx/Tx (LxWxH): 80.4 x 61.6 x 24.0 mm
- Weight Rx/Tx: 102g each
- Warranty: 2 years
Installation and service in North Carolina only. Preprogramming can be done before shipping to site.
Replaces part #MX-2wirePlus-Info1-EXT-PW.
| Part # | Mx-A-ETP1A-2601-SET |
|---|---|
| MFR | MOBOTIX |
Mobotix Mx-A-ETP1A-2601-SET.
Mx-ETP1A-2601-SET Complete set consisting of two two-wire transmitting and receiving units - Transmission of Ethernet and PoE+ Power supply via two-wire line according to IEEE1901 - Requires additional power supply (e.g. Mx-A-ETP1A-2601-POW).
Key Features:
- Mx-ETP1A-2601-SET Complete set consisting of transmitter (Tx) and receiver (Rx) for implementing an Ethernet transmission link via two-wire line
- Transmission of Ethernet and PoE+ power supply via two-wire line according to IEEE1901
- Simple connection of 10/100 Mbit Ethernet end devices
- Max. 95 Mbps transmission bandwidth,
- Range up to 600m for data / 300m for PoE (depending on the quality of the two-wire line)
- 128 bit AES network data encryption
- Power supply of transmitter (Tx) and receiver (Rx) as well as terminal device via PoE+ network switch or via external power supply 56VDC / 1.2A (not included in delivery)
- Connected end devices are supplied via PoE switch IEEE802.3af (PoE), IEEE802.3at (PoE+), UPoE up to 60W (requires ext. power supply).
- Status LED (data, power supply, data link, PoE)
- Integrated overvoltage protection (IEC 61000-4-5 4kV (1.2 / 50us), 2kA (8 / 20us))
- Supply voltage: Tx: T-Linx or DC12V~57V; Rx: PoE Switch or DC48V~57V
- Operating temperature: -20 to +60 °C
- Dimensions Rx/Tx (LxWxH): 80.4 x 61.6 x 24.0 mm
- Weight Rx/Tx: 102g each
- Warranty: 2 years
Installation and service in North Carolina only. Preprogramming can be done before shipping to site.
Replaces part #MX-2wirePlus-Info1-EXT-PW.
