MOBOTIX PROXIMITY BOX (NEW)
Featured Products
MOBOTIX PROXIMITY BOX (NEW)
Mobotix Proximity Box.

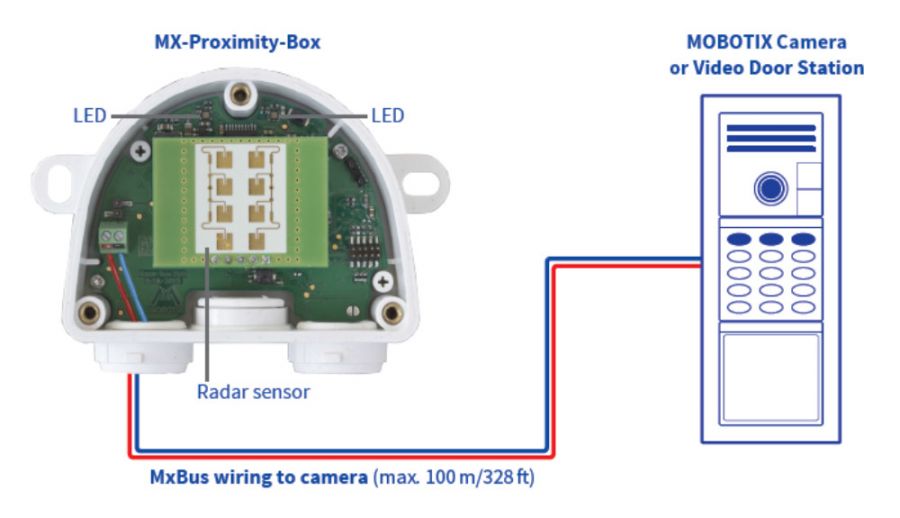

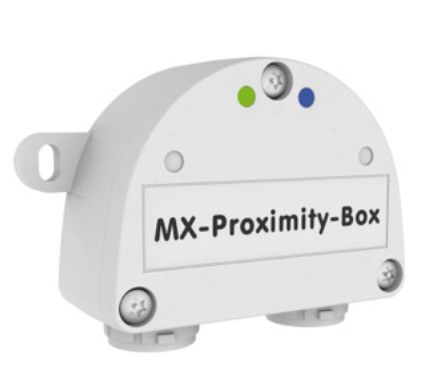

Concealed Motion Detection For MOBOTIX Systems The MX-Proximity-Box is a compact, weatherproof interface box (IP66) with integrated microwave radar sensor technology that can be connected to all cameras using MxBus. The MX-Proximity-Box detects moving objects using actively emitted and reflected radar waves. Since it can be installed at distances of up to 100 m away from the camera (via MxBus connection), the MX-Proximity-Box is a helpful supplement to the passive infrared sensor (PIR) that is integrated with the D15, M15 and ExtIO as a standard.
- Radar wave-based detection of moving objects, even if there is no difference in temperature between these and the environment
- Ideal supplement to PIR sensors that only react to infrared radiation
- Detection of all kinds of movements, plus the option to filter out radial movements (only sends MxMessage for approaching/distancing objects, for instance)
- Pre-defined profiles of approaching/distancing/movements for optimal detection of human movements
- Completely concealed installation behind wood, plastic or drywall is possible (with reduced detection range)

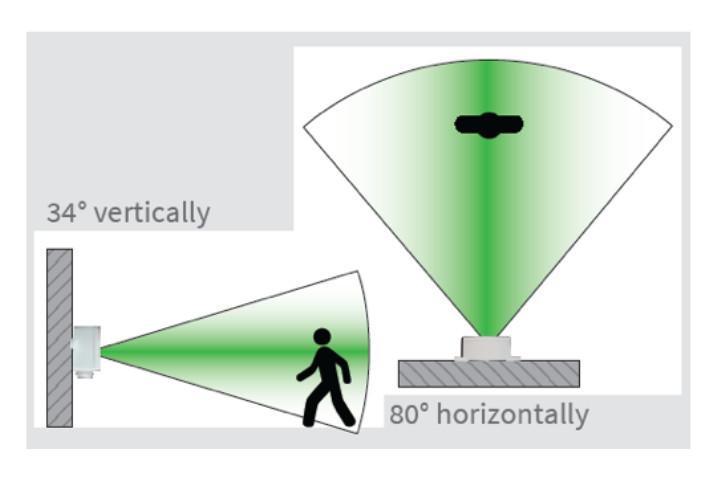

The MX-Proximity-Box features a radar image area that measures 80° horizontally and 34° vertically. It can detect vehicles at a distance of up to 35 meters, and people at a distance of up to 15 meters.
Installation and service in North Carolina only. Preprogramming can be done before shipping to site.
| Part # | MX-PROX-BOX |
|---|---|
| MFR | MOBOTIX |
Mobotix Proximity Box.
Concealed Motion Detection For MOBOTIX Systems The MX-Proximity-Box is a compact, weatherproof interface box (IP66) with integrated microwave radar sensor technology that can be connected to all cameras using MxBus. The MX-Proximity-Box detects moving objects using actively emitted and reflected radar waves. Since it can be installed at distances of up to 100 m away from the camera (via MxBus connection), the MX-Proximity-Box is a helpful supplement to the passive infrared sensor (PIR) that is integrated with the D15, M15 and ExtIO as a standard.
- Radar wave-based detection of moving objects, even if there is no difference in temperature between these and the environment
- Ideal supplement to PIR sensors that only react to infrared radiation
- Detection of all kinds of movements, plus the option to filter out radial movements (only sends MxMessage for approaching/distancing objects, for instance)
- Pre-defined profiles of approaching/distancing/movements for optimal detection of human movements
- Completely concealed installation behind wood, plastic or drywall is possible (with reduced detection range)
The MX-Proximity-Box features a radar image area that measures 80° horizontally and 34° vertically. It can detect vehicles at a distance of up to 35 meters, and people at a distance of up to 15 meters.
Installation and service in North Carolina only. Preprogramming can be done before shipping to site.
