MOBOTIX WEATHERPROOF THERMOGRAPHIC DUAL M16 CAMERA WITH 17° (R237) THERMAL LENS (NEW)
Featured Products

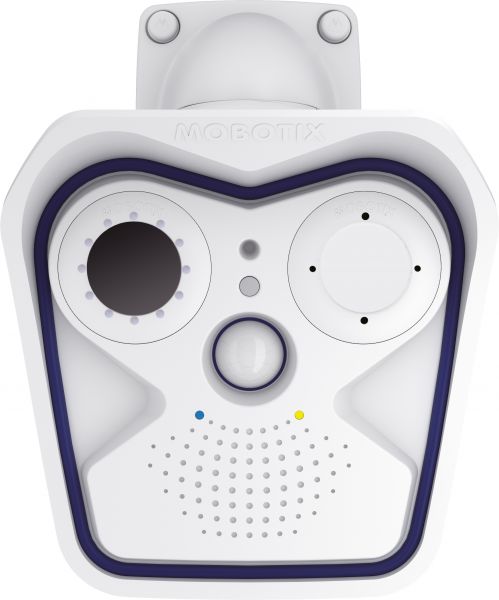

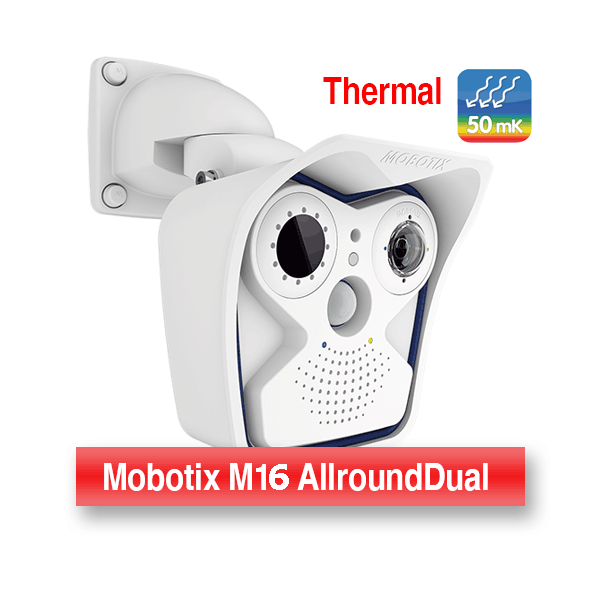

MOBOTIX WEATHERPROOF THERMOGRAPHIC DUAL M16 CAMERA WITH 17° (R237) THERMAL LENS (NEW)
Twice As Secure - Even In Total Darkness.

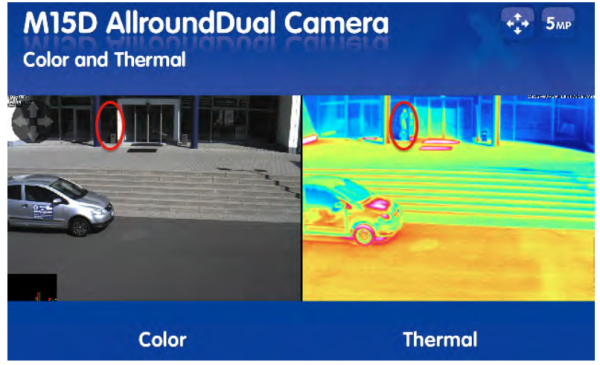

The intelligent video system with an integrated high-performance thermal image sensor takes full advantage of the M16 camera design. Thanks to the two directly adjacent lenses, there is also a thermal overlay function with image overlay (thermal and optical) to pinpoint the exact location of hotspots like smoldering fires in a visible image.
- High-end thermografic camera with thermal sensor of typically 50 mK and a temperature measuring range of -40 to +550°C/-40 to +1022°F
- Two cameras in one: Thermal sensor plus 6MP sensor module can be displayed simultaneously in the dual image.

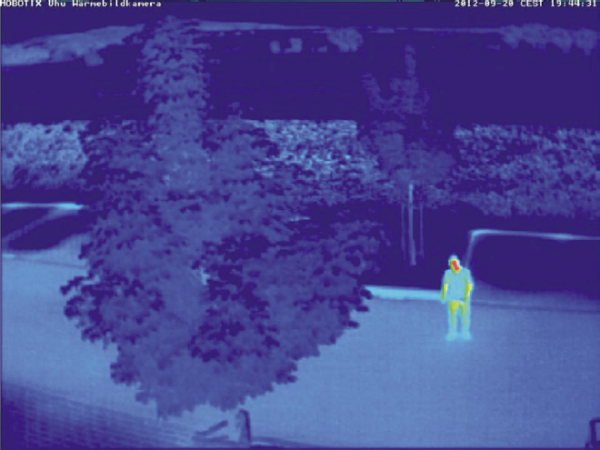

- The thermal sensor is capable of detecting even in complete darkness and/or through smoke, smog, or a thin plastic screen (limited during thick fog).
- Thermal images for detection are an ideal addition to systems with standard image sensors (for identification).
- The combination with the MxActivitySensor in particular delivers extremely reliable video analysis results of person/vehicle movements, as it is now possible to block out disruptive factors such as regular movements of "cold" objects such as bushes, grass, water, clouds, waves, etc.
- Thermal technology coverage is largely independent of distance.
- Thermal sensor with three different focal lengths available (image angle of 17°, 25° and 45°).
Thermal Lenses from Super Wide Angle (17°) to Tele (17°) for M15D MOBOTIX cameras.
Lens options MX sensor module (left, optional) 180° to 13° horizontal field of view
Lens |
Type |
L43 |
Super Wide Angle 45° |
L65 |
Wide Angle 25° |
L135 |
Wide Angle 17° |
Note: In the color sensors, the infrared CUT filter is NOT in the lens, but rather already installed in the lens casing in the camera.
Important Features:
- High-end thermografic camera with thermal sensor of typically 50 mK and a temperature measuring range of -40 to +550°C/-40 to +1022°F
- The thermal sensor is capable of detecting in complete darkness and/or through smoke, smog, or a thin plastic film (limited during thick fog); applications include border protection: view of the sea in coastal areas, ships in the distance can be recognized in hazy conditions.
- The combination with the MxActivitySensor in particular delivers extremely reliable video analysis results of person/vehicle movements, as it is now possible to block out disruptive factors such as regular movements of "cold" objects such as bushes, grass, water, clouds, waves etc.
- No glare from strong sources of light (such as headlights, hand-held lamps).
- Detection of hotter than average body parts or technical devices, detection of faults in photovoltaic systems, overheated machine bearings etc.
- Low camera power consumption of max. 5.5 W (thermal sensor plus 6 MP sensor module, without additional MxBus devices).
- The thermal image sensor is configured using camera software in a web browser; it is possible to display the thermal image with all other MOBOTIX user software (MxMC, MxEasy, MxCC, App).
Installation and service in North Carolina only. Preprogramming can be done before shipping to site.
Cameras with thermographic image sensors ("thermal cameras") are subject to the special export regulations of the U.S.A. and the ITAR (International Traffic in Arms Regulation): According to the currently applicable export regulations of the U.S.A. and the ITAR, cameras with thermographic image sensors or parts thereof must not be exported to countries embargoed by the U.S.A. or the ITAR. At present, this applies to the following countries: Syria, Iran, Cuba, North Korea and Sudan. The same export ban applies to all persons and institutions listed in "The Denied Persons List" (see www.bis.doc.gov, "Policy Guidance > Lists of Parties of Concern"). Under no circumstances can the camera itself or its thermographic image sensors be used in the design, the development or in the production of nuclear, biological or chemical weapons or in the weapons themselves. Cameras with thermographic image sensors ("thermal cameras") are subject to the special export regulations of the U.S.A. and the ITAR (International Traffic in Arms Regulation):
- According to the currently applicable export regulations of the U.S.A. and the ITAR, cameras with thermographic image sensors or parts thereof must not be exported to countries embargoed by the U.S.A. or the ITAR. At present, this applies to the following countries: Syria, Iran, Cuba, North Korea and Sudan. The same export ban applies to all persons and institutions listed in "The Denied Persons List" (see www.bis.doc.gov, "Policy Guidance > Lists of Parties of Concern").
- Under no circumstances can the camera itself or its thermographic image sensors be used in the design, the development or in the production of nuclear, biological or chemical weapons or in the weapons themselves.
Replaces MX-M15D-Thermal-L135.
