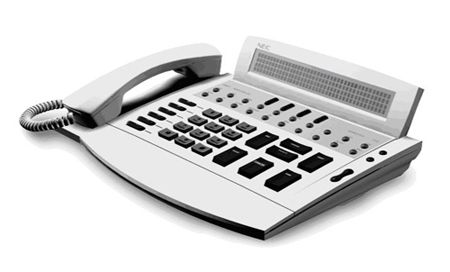

NEC SN716 DESK CONSOLE Package for NEAX and Univerge System Platforms.

The SN716 Desk Console represents a new generation of consoles for the NEC's family of NEAX PBX systems. It is the replacement for the existing NEAX® 2400 Attendant Console, NEAX 2400 Advanced Attendant Console, NEAX 2400 Hotel/Motel Console and the NEAX 2000 SN610 Attendant Console. The highlights for the SN716 Attendant Console include compact size, ergonomic design and a low installation cost with three pair cable.

The SN716 Desk Console operates on a switched-loop basis with a maximum of six Attendant loops terminating at each console on the associated Interface card. The Attendant uses these loops for answering, originating, holding, extending, and re-entering calls. When Attendant loop release is used, the number of loops is effectively increased to a maximum of 12 for each console.

The SN716 Desk Console also provides flexible key assignments to meet the operator's needs. Key assignments are semi-fixed by system default data, but may be changed via programming. The SN716 Desk Console connects to the NEAX 2400 systems using the SPA-CS33 Attendant Interface (ATI) card. To connect to NEAX 2000/1000 and EXPRESS systems, a Dterm Series III/E line card is required.

Includes:

• Console
• Handset
• Power Supply

Learn More

1 year Warranty.

Do you need Software Assurance?  CommGear sells it.  Install and service at an additional charge.

Replaces part # 8525001, 8525008 / Q24-UW000000108025 (CON-C), 9525008 / Q24-UW000000108025.

Discontinued.
