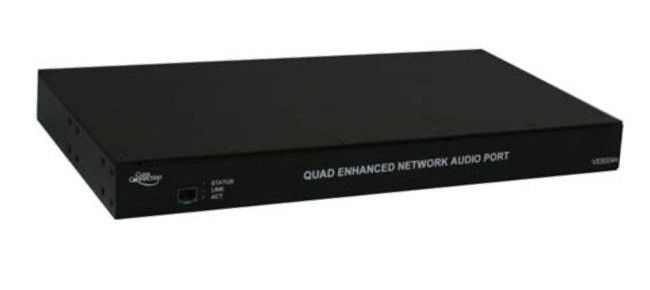

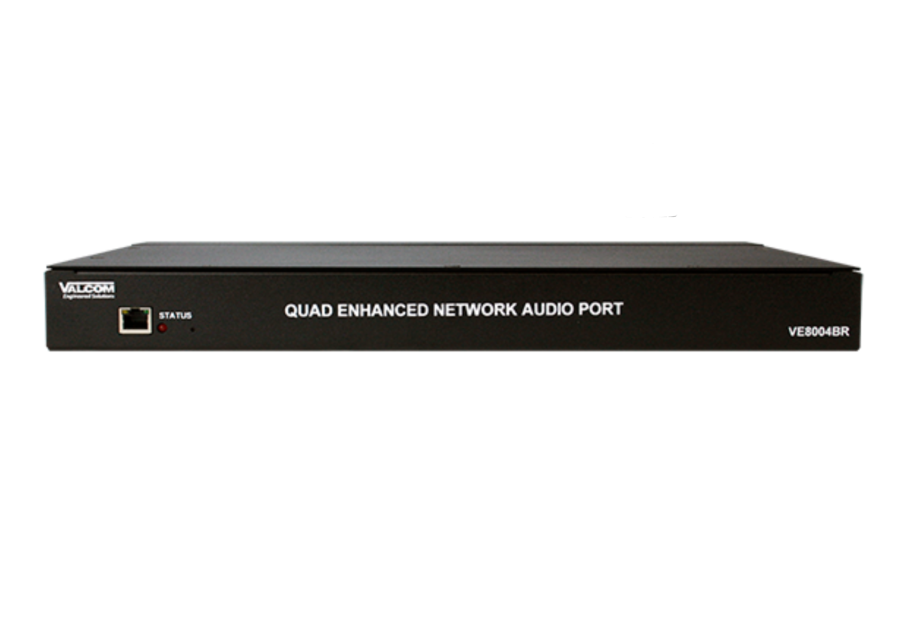

VALCOM VE8004BR SIP COMPLIANT QUAD NETWORK AUDIO PORT (RACK MOUNT)

Valcom Mass Notification

VALCOM VE8004BR SIP COMPLIANT QUAD NETWORK AUDIO PORT (RACK MOUNT)

Part # VE8004BR
In Stock
Special Price2131 $975.00 Regular Price $1,000.00
- +

Lead-Time is 3-4 weeks.

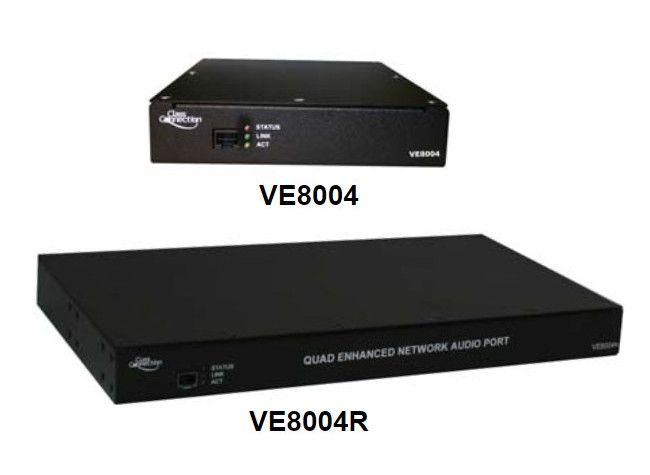

The VE8004/VE8004R Quad Networked Page Zone Extender enables voice access to two zones of one-way paging over an IP-based LAN/WAN. This allows page zone extension anywhere on the network. The VE8004 is designed for wall or table placement. The VE8004R is designed for 19” rack mounting (1U).

Features:

  • 4 Audio Outputs or Inputs
  • 4 Form A relay contacts
  • 4 Contact Closure Inputs
  • RJ-45 for network connection
  • Front panel activity LED
  • Provides audio for up to 40 Valcom one-way amplified speaker assemblies per zone
  • AUX audio input via RCA jack
  • Contact closure or VOX operation of audio input
  • Page with music output, music mutes during page
  • Output control contact closure provided during paging output
  • VM-186 RJ-45 Connectors provided for audio and relay interface
  • Compatible with 25 or 70 Volt amplifiers
  • 2.5mm jack for optional DC power
  • Power over Ethernet (PoE) 802.3af compatible



Control Unit Power Requirements: Via 802.3at PoE+ Ethernet Switch Port

Learn More

Do you need a Cable Run? Ceiling Speakers and Paging Horns? CommGear sells them. Install and service at an additional charge.

Additional Information
More Information
Part # VE8004BR
MFR VALCOM
Details

Lead-Time is 3-4 weeks.

The VE8004/VE8004R Quad Networked Page Zone Extender enables voice access to two zones of one-way paging over an IP-based LAN/WAN. This allows page zone extension anywhere on the network. The VE8004 is designed for wall or table placement. The VE8004R is designed for 19” rack mounting (1U).

Features:

  • 4 Audio Outputs or Inputs
  • 4 Form A relay contacts
  • 4 Contact Closure Inputs
  • RJ-45 for network connection
  • Front panel activity LED
  • Provides audio for up to 40 Valcom one-way amplified speaker assemblies per zone
  • AUX audio input via RCA jack
  • Contact closure or VOX operation of audio input
  • Page with music output, music mutes during page
  • Output control contact closure provided during paging output
  • VM-186 RJ-45 Connectors provided for audio and relay interface
  • Compatible with 25 or 70 Volt amplifiers
  • 2.5mm jack for optional DC power
  • Power over Ethernet (PoE) 802.3af compatible



Control Unit Power Requirements: Via 802.3at PoE+ Ethernet Switch Port

Learn More

Do you need a Cable Run? Ceiling Speakers and Paging Horns? CommGear sells them. Install and service at an additional charge.
