VALCOM VE8048 INPUT/OUTPUT MODULE
Valcom Mass Notification

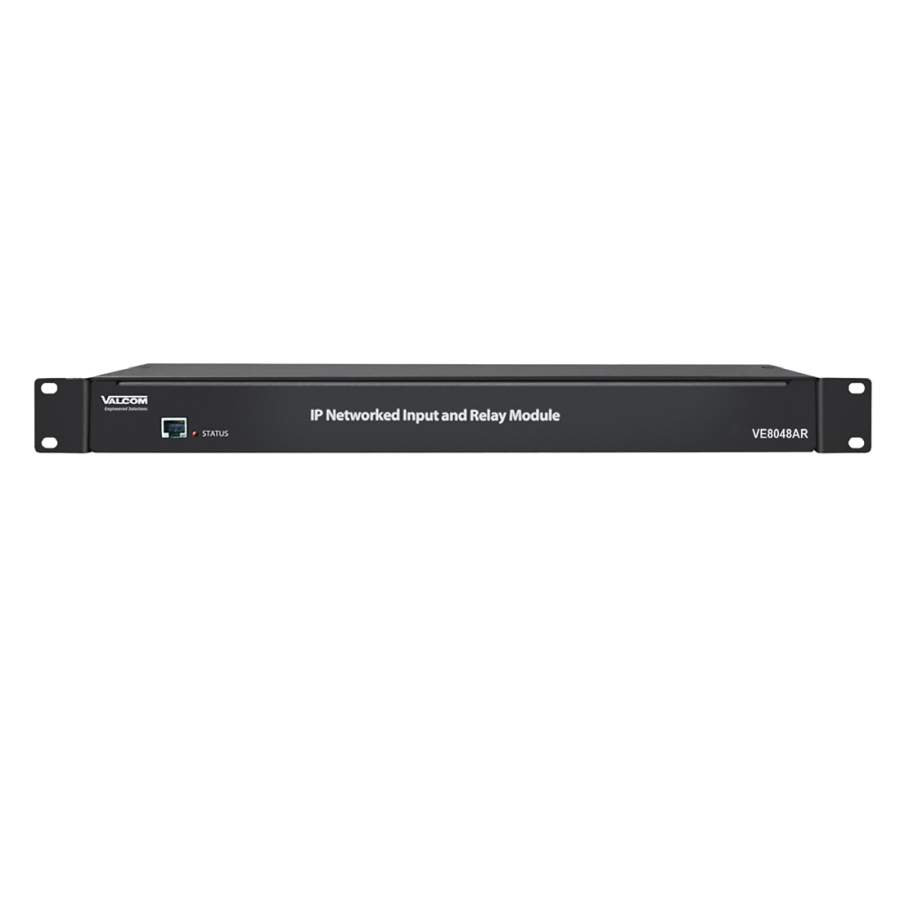

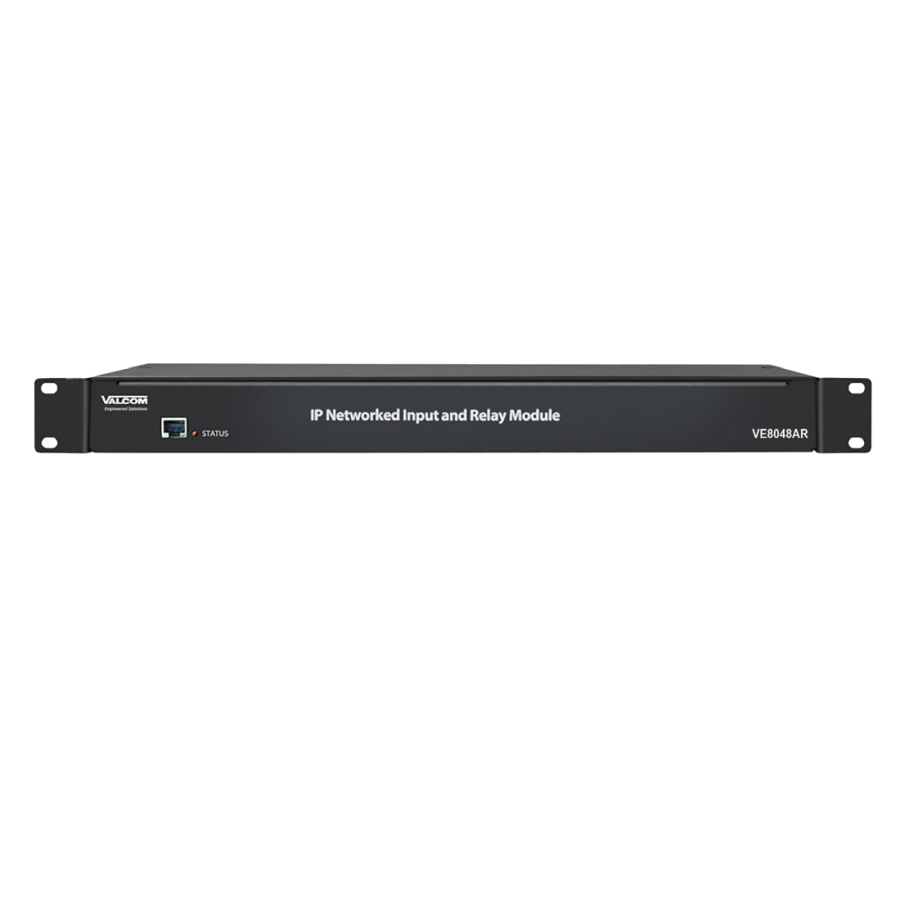

VALCOM VE8048 INPUT/OUTPUT MODULE
SPECIAL ORDER
The VE8048/VE8048R IP Input/Output Module allows operation of eight (8) contact closures which are software programmable as either Form A or form B. Eight (8) contact closure activated inputs provide for various programmable relay functions. The VE8048/VE8048R allows initiation of VE6001 server events over an IPbased LAN/WAN. Multiple VE8048/VE8048R may be deployed on the same network. The VE8048 is designed for wall or table placement. The VE8048R is designed for 19” mounting (1U).
Features:
- 8 Relay Contacts
- Programmable as either Form A or Form B
- 8 Contact Closure Inputs
- RJ-45 For Network Connection
- Front Panel Activity LED
- Removable Screw Terminal Connector Provided For Input And Relay Interface
- 2.5mm Jack For DC Power (optional)
- Power Over Ethernet (PoE) 802.3af Compatible
- No Server Required
- 1 to 11 Digit Dial Plans
- Easy Windows Based Setup
Control Unit Power Requirements: Via 802.3at PoE+ Ethernet Switch Port
Do you need a Cable Run? Ceiling Speakers and Paging Horns? CommGear sells them. Install and service at an additional charge.
| Part # | VE8048AR |
|---|---|
| MFR | VALCOM |
SPECIAL ORDER
The VE8048/VE8048R IP Input/Output Module allows operation of eight (8) contact closures which are software programmable as either Form A or form B. Eight (8) contact closure activated inputs provide for various programmable relay functions. The VE8048/VE8048R allows initiation of VE6001 server events over an IPbased LAN/WAN. Multiple VE8048/VE8048R may be deployed on the same network. The VE8048 is designed for wall or table placement. The VE8048R is designed for 19” mounting (1U).
Features:
- 8 Relay Contacts
- Programmable as either Form A or Form B
- 8 Contact Closure Inputs
- RJ-45 For Network Connection
- Front Panel Activity LED
- Removable Screw Terminal Connector Provided For Input And Relay Interface
- 2.5mm Jack For DC Power (optional)
- Power Over Ethernet (PoE) 802.3af Compatible
- No Server Required
- 1 to 11 Digit Dial Plans
- Easy Windows Based Setup
Control Unit Power Requirements: Via 802.3at PoE+ Ethernet Switch Port
Do you need a Cable Run? Ceiling Speakers and Paging Horns? CommGear sells them. Install and service at an additional charge.
