VALCOM EZ-PC6 6-ZONE HYBRID PAGE CONTROLLER
Valcom Page Control Units

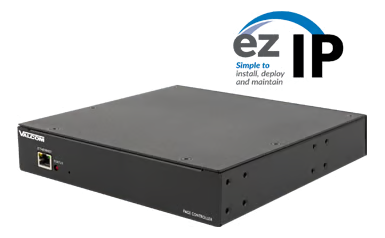

VALCOM EZ-PC6 6-ZONE HYBRID PAGE CONTROLLER
- Buy 2 for $850.00 each and save 6%
The ezIP Page Controller is a six-zone hybrid one-way page controller, combining analog paging zones with IP capabilities to bridge the analog and IP worlds.
Features:
- Provides paging from various phone system connections (FXS, PABX station extension or loop start trunk port, Standard telephone, and SIP (Session Initiation Protocol).
- Wideband HD voice for higher intelligible speech
- Simultaneously multicast to IP endpoints and provide line-level output to analog endpoints
- Support for Valcom 45 OHM, 25 Volt, or Valcom Self-Amplified Speakers
- Background Music Input
- Override Audio & Controls
- Flexible Mounting Options (Rack-Mount or Wall-Mount)
- Access to one dry contact closure input (expandable up to 6 with license upgrade)
- Expandable Zone Capabilities via the network (multiple units maybe joined together for 12 or 18 zones)
- Secure SIP
- Scheduler for tone output on a timed basis
Specifications:
- FXO INPUT
- Ring Detect Voltage 13.5V Min REN 0.2
- FXS INPUT
- DC Open Circuit Voltage -48V Nominal
- DC Feed Circuit 45mA Max
- DC Differential Output Resistance 60-640 Ohms
- Ringing Amplitude (nominal, open circuit) 108V peak
- Ring Frequency 20Hz
- Audio Sense Release: Programmable, 0-600 Seconds
- Time Out Release: Programmable, 0-3600 Seconds
Do you need a Cable Run? Ceiling Speakers and Paging Horns? CommGear sells them. Install and service at an additional charge.
Replaces part #V-2006A.
| Part # | EZ-PC6 |
|---|---|
| MFR | VALCOM |
The ezIP Page Controller is a six-zone hybrid one-way page controller, combining analog paging zones with IP capabilities to bridge the analog and IP worlds.
Features:
- Provides paging from various phone system connections (FXS, PABX station extension or loop start trunk port, Standard telephone, and SIP (Session Initiation Protocol).
- Wideband HD voice for higher intelligible speech
- Simultaneously multicast to IP endpoints and provide line-level output to analog endpoints
- Support for Valcom 45 OHM, 25 Volt, or Valcom Self-Amplified Speakers
- Background Music Input
- Override Audio & Controls
- Flexible Mounting Options (Rack-Mount or Wall-Mount)
- Access to one dry contact closure input (expandable up to 6 with license upgrade)
- Expandable Zone Capabilities via the network (multiple units maybe joined together for 12 or 18 zones)
- Secure SIP
- Scheduler for tone output on a timed basis
Specifications:
- FXO INPUT
- Ring Detect Voltage 13.5V Min REN 0.2
- FXS INPUT
- DC Open Circuit Voltage -48V Nominal
- DC Feed Circuit 45mA Max
- DC Differential Output Resistance 60-640 Ohms
- Ringing Amplitude (nominal, open circuit) 108V peak
- Ring Frequency 20Hz
- Audio Sense Release: Programmable, 0-600 Seconds
- Time Out Release: Programmable, 0-3600 Seconds
Do you need a Cable Run? Ceiling Speakers and Paging Horns? CommGear sells them. Install and service at an additional charge.
Replaces part #V-2006A.
