PANORAMA ANTENNAS WMMG-7-38-03NJ MiMo 3G/4G WALL / MAST ANTENNA

Part # WMMG-7-38-03NJ

In Stock

$315.00

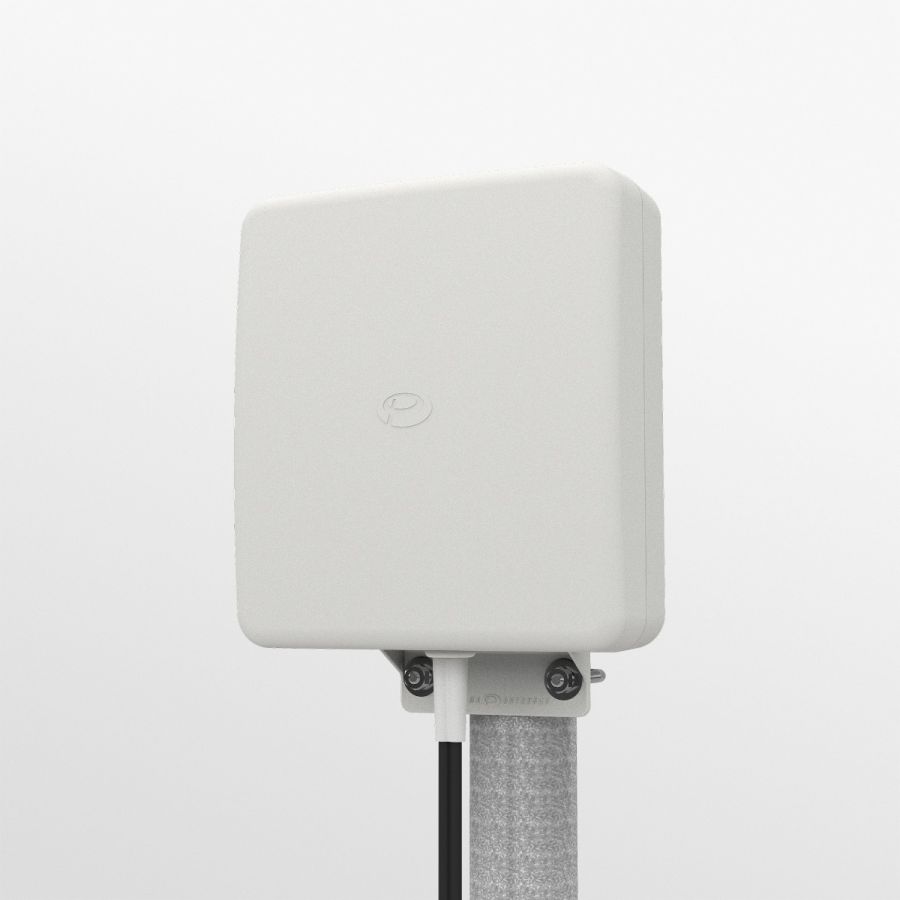

WMMG[G]-7-38 | 2G/3G/4G MiMo Wall / Mast Antenna
The WMMG Antenna Provides an Innovative and Future Proof Solution for 3G/4G and 3.4-3.8GHz 5G Networks. Incorporating two separately fed, ultra-wideband elements in a single housing, it provides a client-side 2x2 MiMo antenna system for the networks of today and tomorrow.

With between 2-5dBi gain in the range 698-3800MHz, the WMMG gives a great performance, whilst maintaining a wide beam pattern which is ideal for metro and urban areas. The rugged, weatherproof housing is designed for wall or mast mounting and hardware is provided. A desk stand is also included to enable the antenna to be positioned on a window sill if preferred. The antenna is supplied with an integral twinned CS29 coaxial cable. WMMG[G]-7-38-5SP version has 5m length, fitted with sma plug connectors for a simple ˜plug & play™ installation. WMMG[G]-7-38-03NJ version has 30cm length, fitted with N socket connectors, which enables the use of lower loss cable types for longer runs. The WMMG is a cost-effective value-added product for network operators and service providers ensuring a stable network connection with improved data rates for subscribers, improving satisfaction and retention.

Features & Benefits
