PERLE S-1000-S2SC10 - SM MEDIA CONVERTER
Featured Products
PERLE S-1000-S2SC10 - SM MEDIA CONVERTER
- Buy 2 for $910.00 each and save 1%

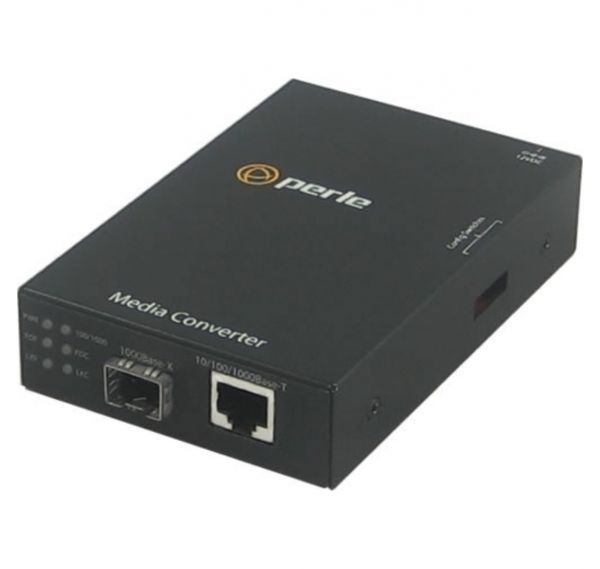

Perle S-1000-S2SC10 - Media Converter
S-1000-S2SC10 USA S-1000-S2SC10 - Gigabit Ethernet Stand-Alone Media Converter.
1000BASE-T (RJ-45) [100 m/328 ft.] to 1000BASELX/LH 1310 nm single mode (SC) [10 km/6.2 miles].
Specifications:
General:
- Device Type: Media converter
- Enclosure Type: External.
- Width: 3.1 in.
- Depth: 4.7 in.
- Height: 1 in.
- Weight: 10.6 oz.
- Localization: United States.
Networking:
- Connectivity Technology: Wired.
- Cabling Type: 1000Base-LX, 1000Base-LH, 1000Base-T.
- Data Link Protocol: Gigabit Ethernet.
- Data Transfer Rate: 1 Gbps.
- Optical Wave Length: 1310 nm.
- Max Transfer Distance: 6.2 miles.
- Status Indicators: Link activity, power, receive.
- Features: Auto-negotiation, auto-uplink (auto MDI/MDI-X), Smart Missing Link (SML), half duplex mode, full duplex mode, Jumbo Frames support.
- Compliant Standards: IEEE 802.3ab, IEEE 802.3x.
Expansion / Connectivity:
- Interfaces: 1 x network - Ethernet 1000Base-T - RJ-45 female ª 1 x network - Ethernet 1000Base-LX/1000Base-LH - SC single mode female x 2.
Miscellaneous:
- Compliant Standards: CE, CISPR 22 Class A, EN 60950, EN 61000-3-2, EN55024, EN55022 Class A, RoHS, UL 60950-1, WEEE, FCC Part 15 A, IEC 60825-1.
Power:
- Power Device: Power adapter - external.
- Power Consumption Operational: 3 Watt.
Manufacturer Warranty:
- Service & Support: Limited lifetime warranty.
- Service & Support Details: Limited warranty - lifetime
1 year Warranty.

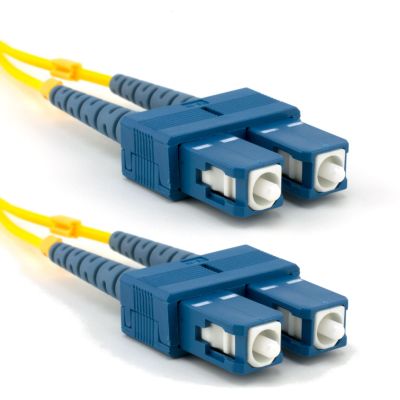

Do you need Patch Cables? CommGear sells them. Install and service at an additional charge.
| Part # | 05050034 |
|---|---|
| MFR | PERLE |
Perle S-1000-S2SC10 - Media Converter
S-1000-S2SC10 USA S-1000-S2SC10 - Gigabit Ethernet Stand-Alone Media Converter.
1000BASE-T (RJ-45) [100 m/328 ft.] to 1000BASELX/LH 1310 nm single mode (SC) [10 km/6.2 miles].
Specifications:
General:
- Device Type: Media converter
- Enclosure Type: External.
- Width: 3.1 in.
- Depth: 4.7 in.
- Height: 1 in.
- Weight: 10.6 oz.
- Localization: United States.
Networking:
- Connectivity Technology: Wired.
- Cabling Type: 1000Base-LX, 1000Base-LH, 1000Base-T.
- Data Link Protocol: Gigabit Ethernet.
- Data Transfer Rate: 1 Gbps.
- Optical Wave Length: 1310 nm.
- Max Transfer Distance: 6.2 miles.
- Status Indicators: Link activity, power, receive.
- Features: Auto-negotiation, auto-uplink (auto MDI/MDI-X), Smart Missing Link (SML), half duplex mode, full duplex mode, Jumbo Frames support.
- Compliant Standards: IEEE 802.3ab, IEEE 802.3x.
Expansion / Connectivity:
- Interfaces: 1 x network - Ethernet 1000Base-T - RJ-45 female ª 1 x network - Ethernet 1000Base-LX/1000Base-LH - SC single mode female x 2.
Miscellaneous:
- Compliant Standards: CE, CISPR 22 Class A, EN 60950, EN 61000-3-2, EN55024, EN55022 Class A, RoHS, UL 60950-1, WEEE, FCC Part 15 A, IEC 60825-1.
Power:
- Power Device: Power adapter - external.
- Power Consumption Operational: 3 Watt.
Manufacturer Warranty:
- Service & Support: Limited lifetime warranty.
- Service & Support Details: Limited warranty - lifetime
1 year Warranty.
Do you need Patch Cables? CommGear sells them. Install and service at an additional charge.
