WILSON 1000C RAPID DEPLOY CELL CONNECTIVITY KIT
Wilson 1000C Rapid Deploy Cell Connectivity Kit
Designed for use in temporary office, government, or medical facilities
4G / 35,000 sq.ft.
EXPECTED INDOOR COVERAGE
- 10,000 sq. ft. with 1-2 bars(-100 dB) of outside signal
- 20,000 sq. ft. with 3-4 bars (-90 dB) of outside signal
- 35,000 sq. ft. with 5 bars of outside signal

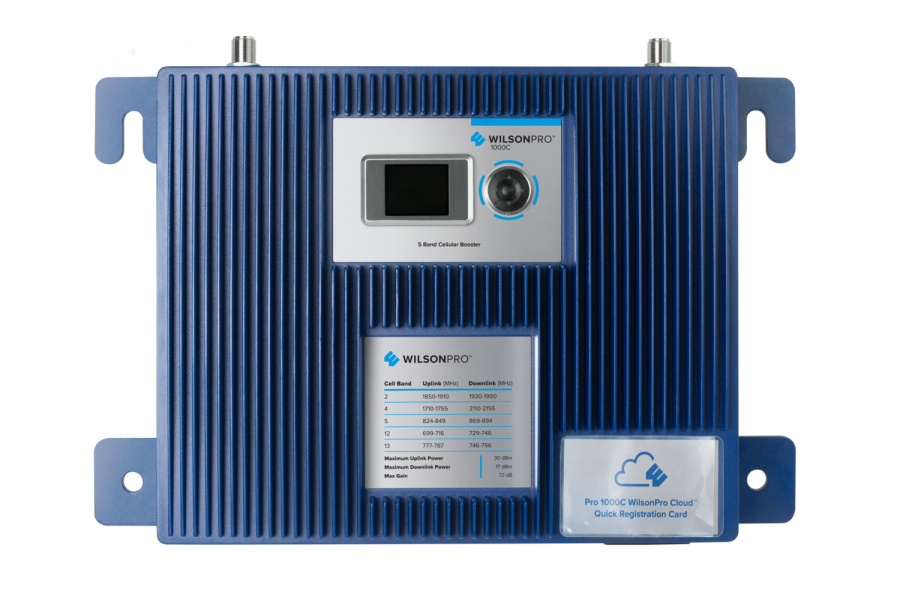

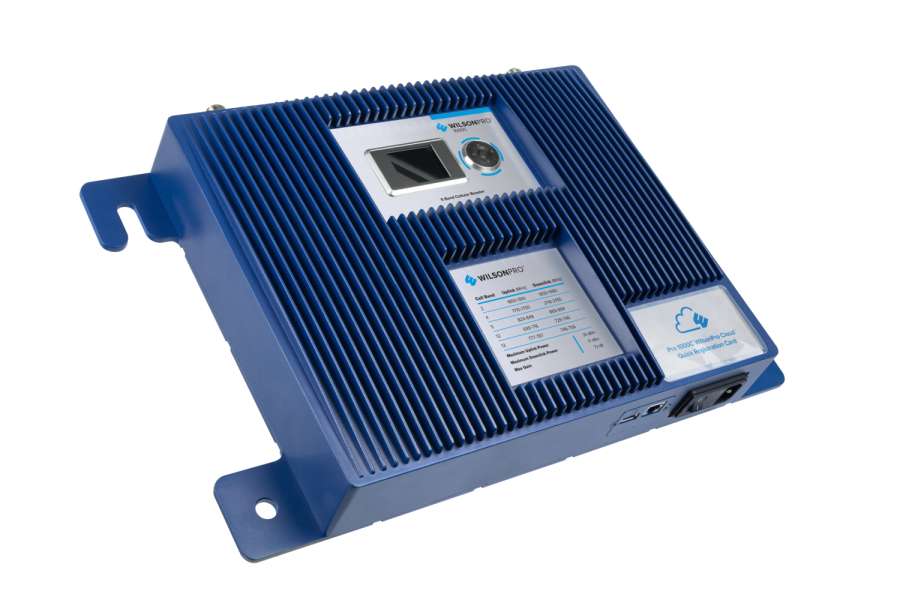

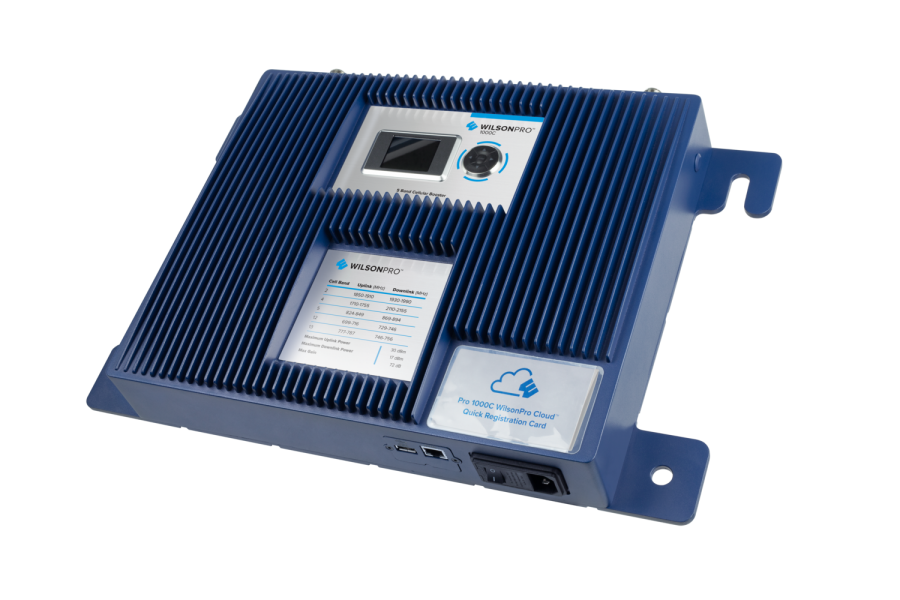

The Wilson Pro 1000C is the first amplifier that incorporates the powerful WilsonPro Cloud Service, allowing this powerful enterprise booster to be alarmed, monitored, and configured remotely.
- Remotely reset an amp or turn specific frequency bands on & off
- Generate reports & view performance histories on your phone
- Organize monitored amps by account and location
- Remote donor antenna tuning tool
- Included 1-year WilsonPro Cloud service subscription
- Covers up to 35,000 sq ft with enhanced 4G LTE & 3G signal
- +15 dB max downlink power for expanded indoor coverage
- Includes XDR - won't shut down due to overpowering tower signal
- Full color display for easy system set up
Works with all U.S. cellular networks
The Pro 1000C communicates back to the WilsonPro Cloud Service wirelessly using a built-in LTE connection. Alternatively it can be connected over a hardwired ethernet connection.
The amplifier itself is very similar to the WilsonPro 1000, with the primary difference being the addition of the WilsonPro Cloud feature set. The Pro 1000C comes with a 1-year subscription to WilsonPro Cloud service.
The WilsonPro Cloud Service allows you to remotely control and monitor your WilsonPro 1000C, including allowing you to:
- Remotely reset the amplifier
- Enable and disable specific frequency bands
- Generate reports & view performance histories
- Organize monitored amplifiers by location
- Use the antenna tuning tool to optimize outdoor antenna location and direction
Additionally, the WilsonPro Cloud Service allows you to set up customizable email and SMS text alert notifications for the following events:
- Amplifier offline or unable to communicate with Cloud Service
- Oscillation (feedback) detected
- Weak or no signal detected
The Wilson Pro 1000C connects to the WilsonPro Cloud using either a built-in LTE modem, or through an Ethernet port on the bottom of the device. The first year of WilsonPro cloud service is included with the device.
The Wilson Pro 1000C is a passive distributed antenna system that boosts signal for all major US carriers in large buildings.
The Pro 1000C is amongst the most powerful FCC-certified signal boosters available in the US, making it ideally suited for larger buildings, including:
- Large homes
- Commercial spaces and retail
- Offices
- Hospitals
- Hotels
- Warehouses
The Pro 1000C is amongst the most feature-rich and powerful amplifiers we sell. It's list of features include:
- Up to 17 dBm downlink output power
Downlink output power defines the maximum coverage area of a booster system when outdoor signal is strong. The FCC limits broadband signal boosters to no more than 17 dBm downlink output power, and the Pro 1000C maxes out that specification. No other booster we sell offers a larger coverage area, except multiple-output units like the Wilson Pro 4000, 4000R, and Cel-Fi Quatra. - Up to 70 dB gain
The gain specification of an amplifier describes the amount that it can amplify signal. If outdoor signal is weak, the gain of the amplifier and outdoor antenna defines the total coverage area. The FCC limits the gain of broadband signal boosters to between 64 and 72 dB, depending on the frequency band. - eXtended Dynamic Range (XDR) technology
WilsonPro's XDR technology allows its amplifiers to dynamically adjust gain to ensure that amplifiers are never overpowered. That means that even if a carrier puts a tower up directly next door, the WilsonPro 1000C will stay online.
How it works
1 - OUTDOOR ANTENNA
The outdoor antenna receives and transmits signal to nearby cellphone towers. Outdoor antennas can be either directional or omni-directional.
2 - CELLULAR AMPLIFIER
The amplifier (or "repeater") boosts the signal coming to and from and going to the cell phone tower. The "gain" of the amplifier describes how strong the amplification is - you'll see that word scattered across our product pages.
3 - INDOOR ANTENNA
The indoor antenna rebroadcasts the signal inside the building. Some kits have more than one indoor antenna to help distribute the signal.
CARRIER COMPATIBILITY:
Compatible with all 2G, 3G, and 4G services and cellular-enabled devices such as smartphones, iPhone, Galaxy, tablets, iPad, and others.
CARRIER | SUPPORTED SERVICES | UNSUPPORTED SERVICES |
---|---|---|
Verizon | 2G/3G Voice + Data 4G LTE | |
AT&T | 2G/3G Voice + Data 4G LTE | |
Sprint | 2G/3G Voice + Data 4G LTE | |
T-Mobile | 2G/3G Voice + Data 4G LTE |

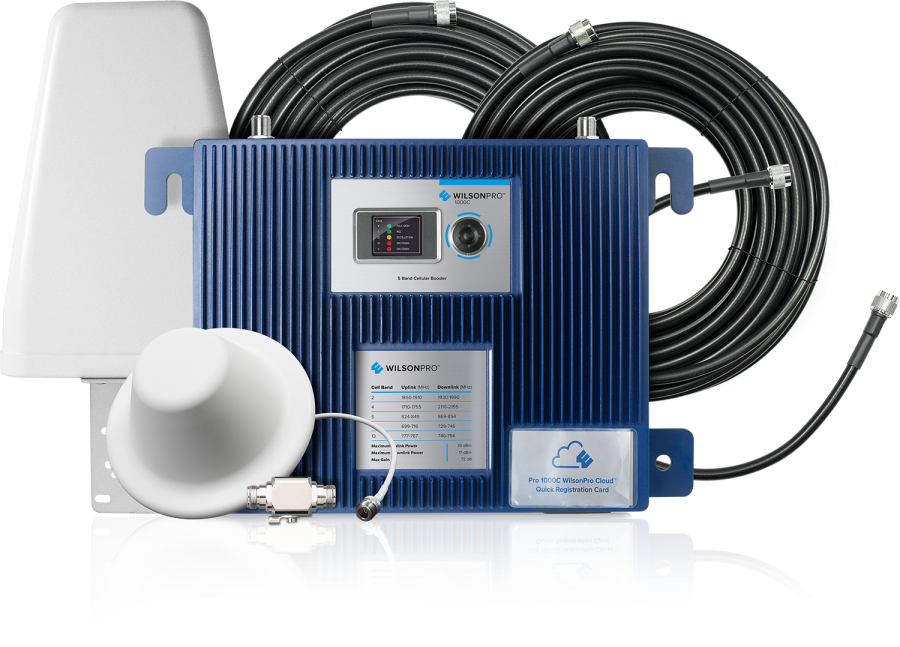

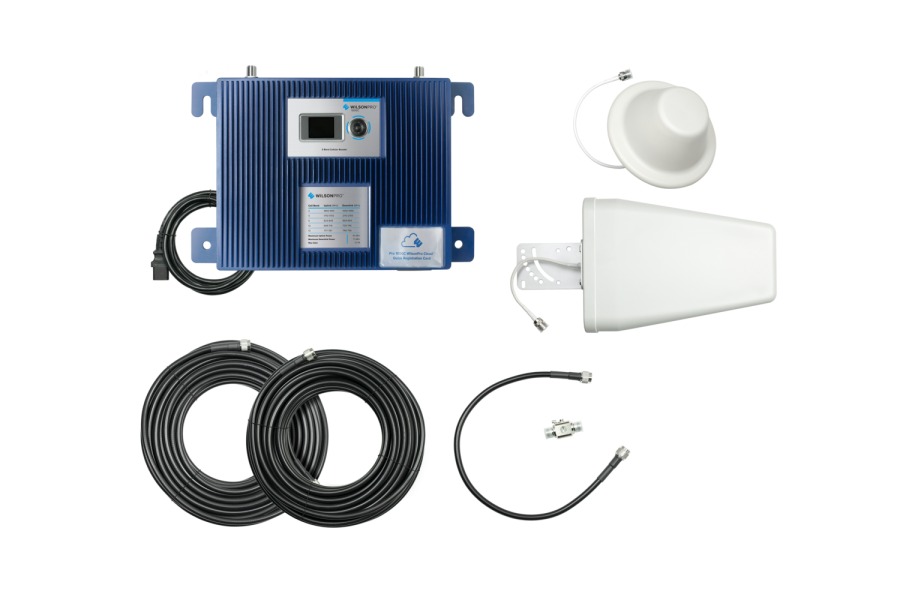

Package Includes:

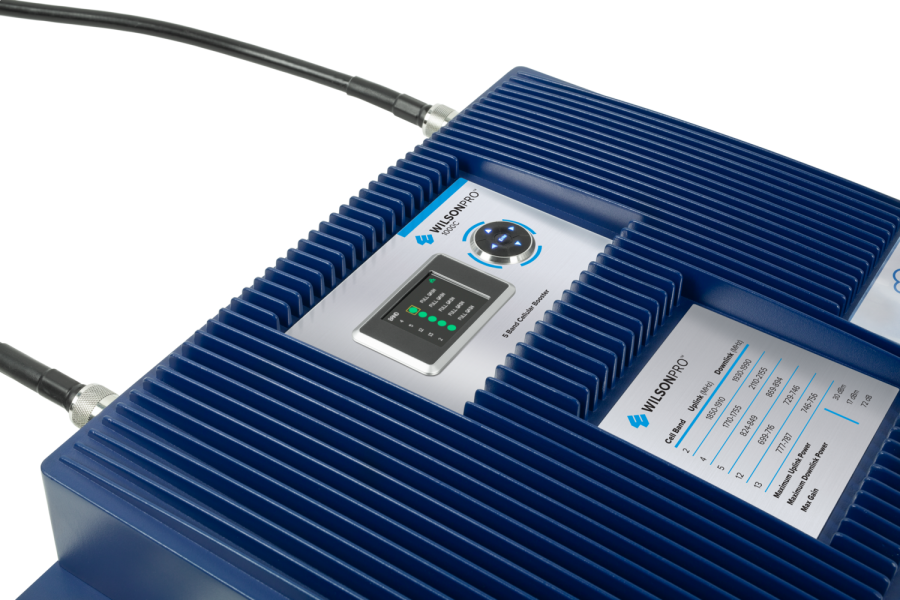

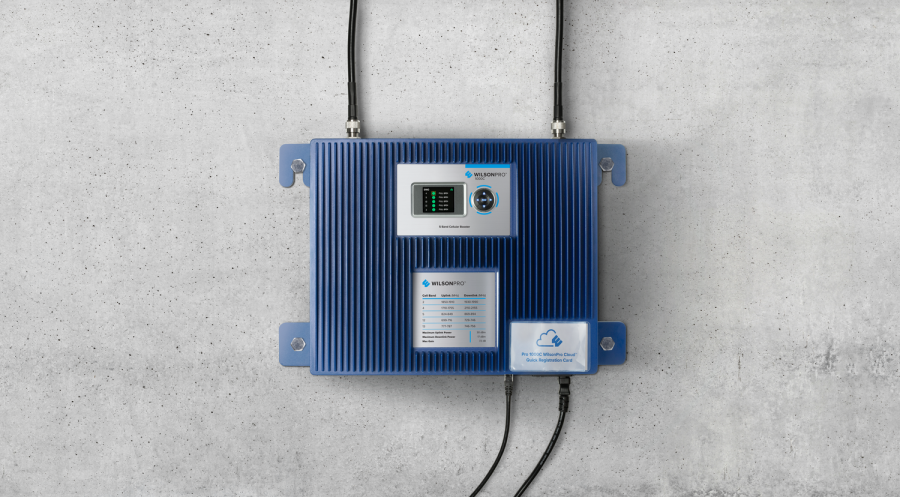

- Qty. (1) Wilson Pro 1000C Amplifier #460242

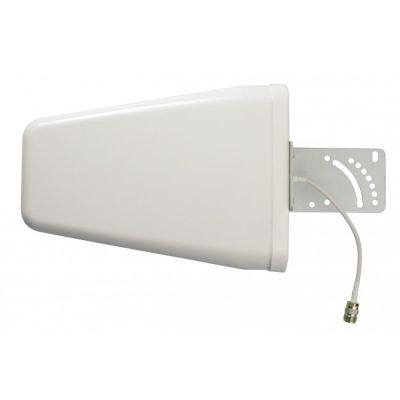

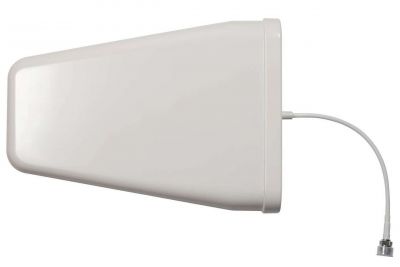

- Qty. (1) Outside Directional Antenna #314412
- Qty. (1) Lightning Surge Protector #859901

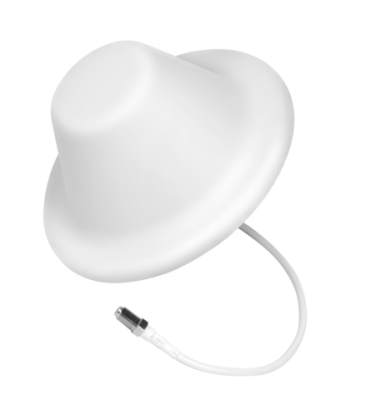

- Qty. (1) Inside Dome Antenna #304412
- Qty. (1) 2 FT. Wilson 400 Cable #952302
- Qty. (1) 75 FT. Wilson 400 Cable #952375
- Qty. (1) 100 FT. Wilson 400 Cable #952300
3 year Warranty.
Do you need Cabling? CommGear can install and service at an additional charge.
Part # | 620042 |
---|---|
MFR | WILSON |
