WILSON TWO WAY 50 Ohm 600-4000 MHz SPLITTER WITH N-FEMALE CONNECTORS
Featured Products
WILSON TWO WAY 50 Ohm 600-4000 MHz SPLITTER WITH N-FEMALE CONNECTORS

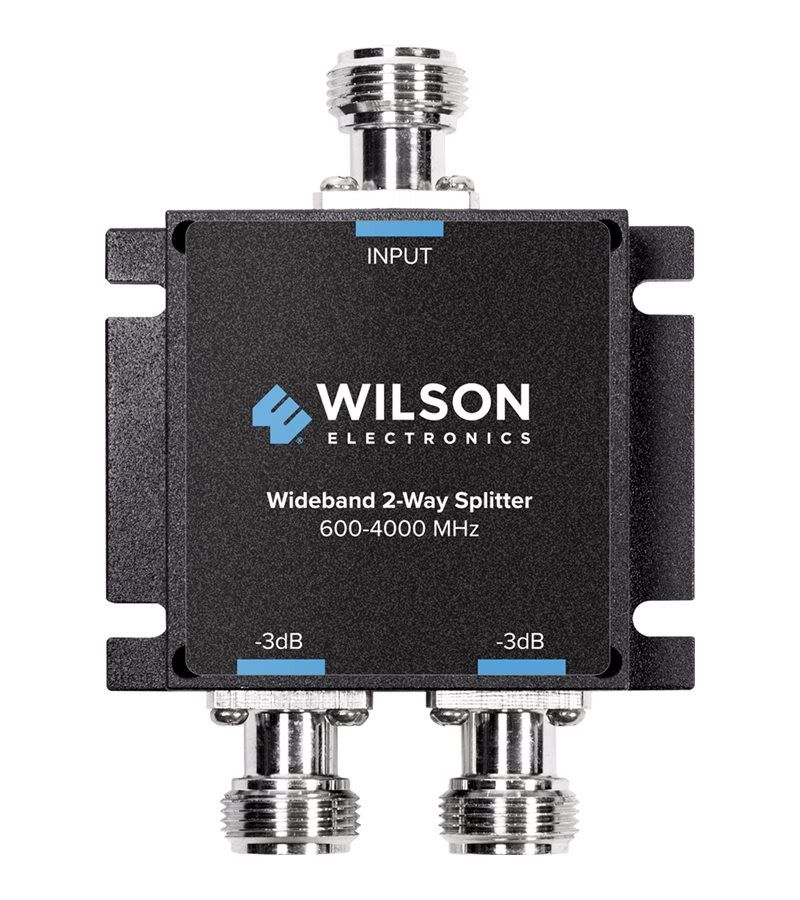

Wilson Two Way 50 Ohm 600-4000 MHz Splitter with N-Female Connectors
Run 2 antennas from a single cable; for use with WilsonPro cellular repeaters
This 2-way splitter (859105) is used with WilsonPro cellular repeaters to split a signal allowing 2 antennas to be run from a single cable and receive similar strength. It is required in order to add C-Band antennas (311245, 311243, 311242) and repeaters to an existing system. Designed to be used with WilsonPro 1337 C-Band products, this splitter is compatible with frequencies from 600 to 4,000 MHz. This IP65 indoor and outdoor rated splitter supports C-Band, T-Mobile band 71, and is Pro 710i compatible. As a high-performance splitter, it features low insertion loss and low VSWR (voltage standing wave ratio). It is equipped with N-Female connectors. Replaces previous version of 2-way splitter (859957).
| CONNECTOR | N-Female |
| IMPEDANCE | 50 Ohms |
| FREQUENCY | 600-4000 MHz |
| LOSS | -3 dB |
| SPLIT RATIO | Equal |
3 year Warranty.
Do you need Cabling? CommGear can install and service at an additional charge.
Replaces part #859957.
| Part # | 859105 |
|---|---|
| MFR | WILSON |
Wilson Two Way 50 Ohm 600-4000 MHz Splitter with N-Female Connectors
Run 2 antennas from a single cable; for use with WilsonPro cellular repeaters
This 2-way splitter (859105) is used with WilsonPro cellular repeaters to split a signal allowing 2 antennas to be run from a single cable and receive similar strength. It is required in order to add C-Band antennas (311245, 311243, 311242) and repeaters to an existing system. Designed to be used with WilsonPro 1337 C-Band products, this splitter is compatible with frequencies from 600 to 4,000 MHz. This IP65 indoor and outdoor rated splitter supports C-Band, T-Mobile band 71, and is Pro 710i compatible. As a high-performance splitter, it features low insertion loss and low VSWR (voltage standing wave ratio). It is equipped with N-Female connectors. Replaces previous version of 2-way splitter (859957).
| CONNECTOR | N-Female |
| IMPEDANCE | 50 Ohms |
| FREQUENCY | 600-4000 MHz |
| LOSS | -3 dB |
| SPLIT RATIO | Equal |
3 year Warranty.
Do you need Cabling? CommGear can install and service at an additional charge.
Replaces part #859957.
