Hilti

HILTI CFS-SL RK 4" FIRESTOP RETROFIT SLEEVE KIT

Product Number: 2064270
Availability: In Stock

Availability: In stock

Regular Price: $177.00

Special Price: $176.00

Special Price:

  • Buy 2 for $175.00 each and save 1%
  • Buy 5 for $174.00 each and save 2%
  • Buy 10 for $173.00 each and save 2%

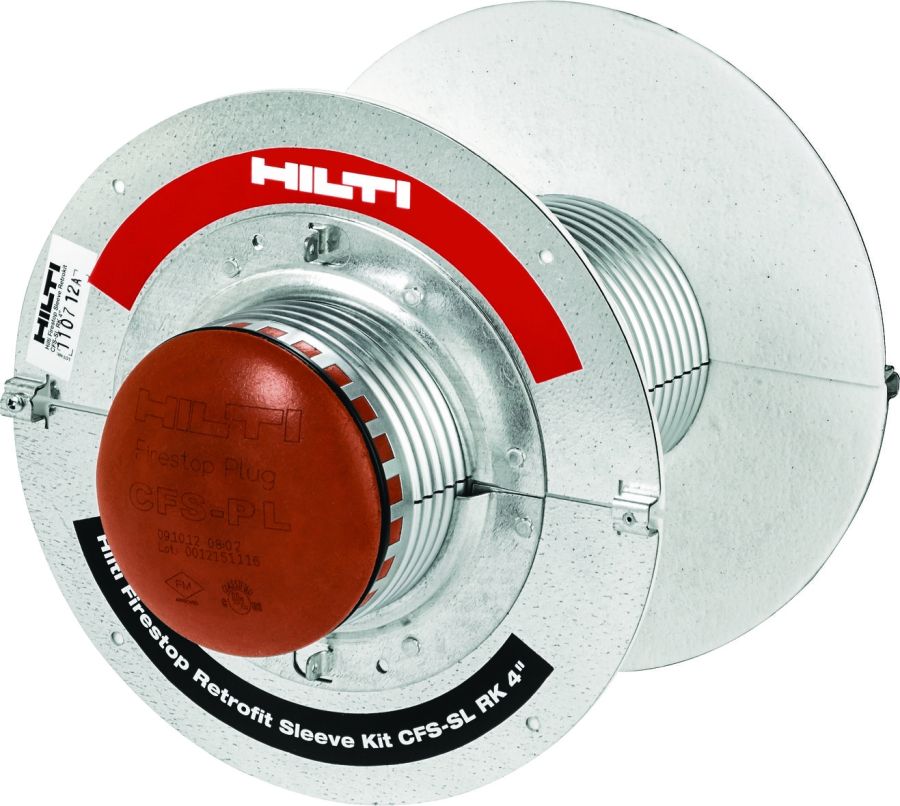

Hilti CFS-SL RK 4" Firestop Retrofit Sleeve Kit.


Base materials: Gypsum, Concrete, Concrete block, Masonry


Features:



  • Fast and easy installation, easy re-penetration

  • Integrated smoke seal on retrofit flange means no additional firestop sealant behind flange

  • Oversized flange for irregular and oversized openings

  • Re-penetrable

  • Buy American compliant


Applications:



  • Sealing existing cable penetrations through walls and floors

  • Suitable for small to medium-sized openings in walls, ceilings and floors

  • Electrical, low voltage / mid voltage and telecom

  • Ideal for irregular and oversized openings around existing cables


Technical Data:



  • Temperature resistance range: 5 - 140 °F

  • Mold and mildew resistance: Yes

  • Expansion temperature (Approx.): 392 °F

  • Expansion ratio (unrestricted, up to): 1:3

  • Tested in accordance with: UL 2079 , ASTM G21 , UL 2079 , ASTM G21 , ASTM E84 (CFS-PL only) , ASTM E814 , CAN/ULC-S115 , UL 1479 , UL 2079 , ASTM E814 , ASTM E84

  • Overall length: 10 in

  • Outside diameter: 4.3 in

  • Max. core bit diameter: 4.8 in

  • Outside diameter (flange): 10 in

  • Surface burning characteristics UL 723 (ASTM E84): Flame spread: 10 Smoke development: 15

  • Storage and transportation temperature range: 23 - 104 °F

  • Application temperature range: 40 - 104 °F

  • LEED VOC: 0.04 lb/gal (US)

  • Intumescent: Yes

  • Corebit diameter: 4.5 in


Learn More


CommGear can install and service at an additional charge.

Part # 2064270
MFR HILTI
