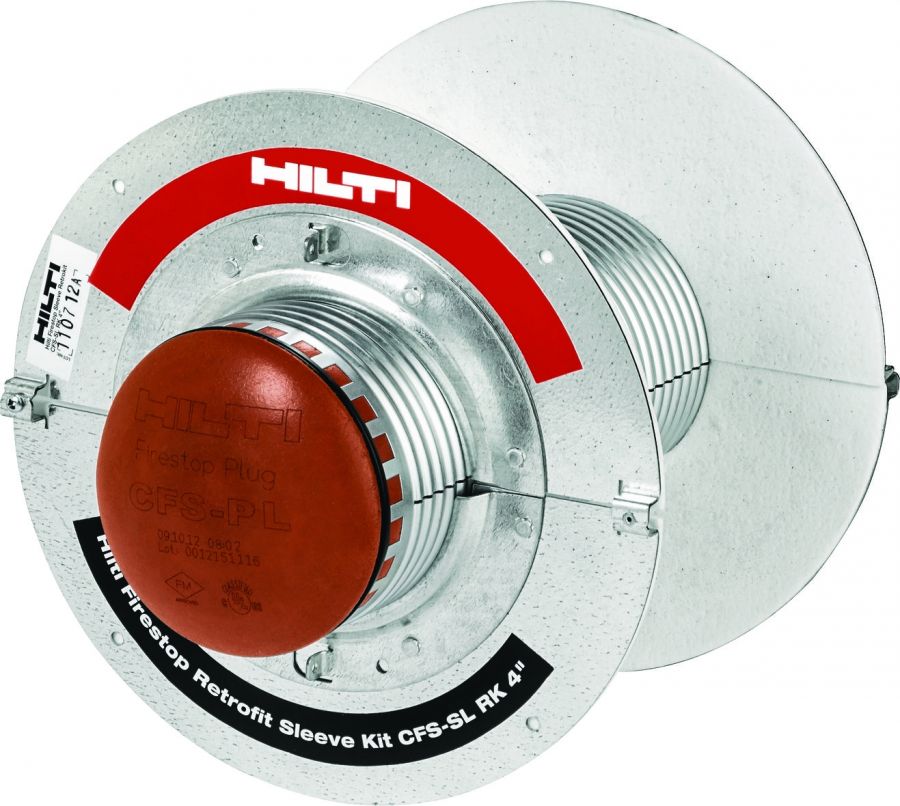

HILTI CFS-SL RK 4" FIRESTOP RETROFIT SLEEVE KIT
Hilti
HILTI CFS-SL RK 4" FIRESTOP RETROFIT SLEEVE KIT
Part # 2064270
In Stock
Special Price2131
$326.00
Regular Price
$328.00
- Buy 2 for $324.00 each and save 1%
- Buy 3 for $322.00 each and save 1%
- Buy 5 for $320.00 each and save 2%
- Buy 10 for $318.00 each and save 2%
Hilti CFS-SL RK 4" Firestop Retrofit Sleeve Kit.
Base materials: Gypsum, Concrete, Concrete block, Masonry
Features:
- Fast and easy installation, easy re-penetration
- Integrated smoke seal on retrofit flange means no additional firestop sealant behind flange
- Oversized flange for irregular and oversized openings
- Re-penetrable
- Buy American compliant
Applications:
- Sealing existing cable penetrations through walls and floors
- Suitable for small to medium-sized openings in walls, ceilings and floors
- Electrical, low voltage / mid voltage and telecom
- Ideal for irregular and oversized openings around existing cables
Technical Data:
- Temperature resistance range: 5 - 140 °F
- Mold and mildew resistance: Yes
- Expansion temperature (Approx.): 392 °F
- Expansion ratio (unrestricted, up to): 1:3
- Tested in accordance with: UL 2079 , ASTM G21 , UL 2079 , ASTM G21 , ASTM E84 (CFS-PL only) , ASTM E814 , CAN/ULC-S115 , UL 1479 , UL 2079 , ASTM E814 , ASTM E84
- Overall length: 10 in
- Outside diameter: 4.3 in
- Max. core bit diameter: 4.8 in
- Outside diameter (flange): 10 in
- Surface burning characteristics UL 723 (ASTM E84): Flame spread: 10 Smoke development: 15
- Storage and transportation temperature range: 23 - 104 °F
- Application temperature range: 40 - 104 °F
- LEED VOC: 0.04 lb/gal (US)
- Intumescent: Yes
- Corebit diameter: 4.5 in
CommGear can install and service at an additional charge.
Additional Information
Part # | 2064270 |
---|---|
MFR | HILTI |
Details
Hilti CFS-SL RK 4" Firestop Retrofit Sleeve Kit.
Base materials: Gypsum, Concrete, Concrete block, Masonry
Features:
- Fast and easy installation, easy re-penetration
- Integrated smoke seal on retrofit flange means no additional firestop sealant behind flange
- Oversized flange for irregular and oversized openings
- Re-penetrable
- Buy American compliant
Applications:
- Sealing existing cable penetrations through walls and floors
- Suitable for small to medium-sized openings in walls, ceilings and floors
- Electrical, low voltage / mid voltage and telecom
- Ideal for irregular and oversized openings around existing cables
Technical Data:
- Temperature resistance range: 5 - 140 °F
- Mold and mildew resistance: Yes
- Expansion temperature (Approx.): 392 °F
- Expansion ratio (unrestricted, up to): 1:3
- Tested in accordance with: UL 2079 , ASTM G21 , UL 2079 , ASTM G21 , ASTM E84 (CFS-PL only) , ASTM E814 , CAN/ULC-S115 , UL 1479 , UL 2079 , ASTM E814 , ASTM E84
- Overall length: 10 in
- Outside diameter: 4.3 in
- Max. core bit diameter: 4.8 in
- Outside diameter (flange): 10 in
- Surface burning characteristics UL 723 (ASTM E84): Flame spread: 10 Smoke development: 15
- Storage and transportation temperature range: 23 - 104 °F
- Application temperature range: 40 - 104 °F
- LEED VOC: 0.04 lb/gal (US)
- Intumescent: Yes
- Corebit diameter: 4.5 in
CommGear can install and service at an additional charge.
