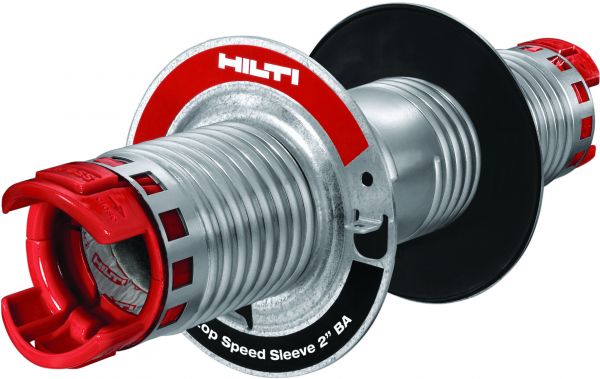

HILTI CP 653 2" FIRESTOP SPEED SLEEVE

Featured Products

HILTI CP 653 2" FIRESTOP SPEED SLEEVE

Part # 2365150 / 2097882
In Stock
Special Price2131 $377.00 Regular Price $379.00
  • Buy 2 for $375.00 each and save 1%
  • Buy 3 for $373.00 each and save 1%
  • Buy 5 for $371.00 each and save 2%
  • Buy 10 for $369.00 each and save 2%
  • Buy 20 for $367.00 each and save 3%
  • Buy 30 for $365.00 each and save 3%
  • Buy 50 for $363.00 each and save 4%
- +

Hilti CP 653 2" Firestop Speed Sleeve.

Features:

  • Functional and compliant when properly installed
  • Twist-to-close mechanism – for easier and remote re-penetration while protecting cables
  • Straightforward inspection – you can see if the sleeve is closed without having to check behind a covering fringe above the ceiling
  • Superior smoke tightness and airflow control thanks to its twisting mechanism
  • Smoke gaskets eliminate need for sealant or putty
  • Can be connected end to end

Applications:

  • Firestopping cable penetrations for single and bundled cables
  • Suitable for small to medium-sized circular openings in walls, ceilings and floors
  • For use on concrete, masonry and drywall

Technical Data:

  • Outside diameter: 2.3 in
  • Base materials: Concrete, Masonry, Drywall
  • Corebit diameter: mm
  • Temperature resistance range: -22 - 212 °F
  • Mold and mildew resistant: Yes
  • Expansion temperature (Approx.): 320 °F
  • Expansion ratio (unrestricted, up to): 1:19
  • Shelf life Not relevant: 1
  • Overall length: 12 in
  • Max. core bit diameter: mm
  • Outside diameter (flange): 4.7 in
  • Storage and transportation temperature range: 23 - 122 °F
  • California State fire marshal approval: CSFM Listing 4485-1200:0138 for CP 653 Speed Sleeve
  • Mold and mildew performance: Class 0 (ASTM G21-96)
  • Application temperature range: 23 - 122 °F
  • Smoke resistance: Yes
  • Seismic resistant: Yes
  • Intumescent: Yes
  • Recommended opening size: 63-73 mm

1 at 77°F/25°C and 50% relative humidity; from date of manufacture

Learn More

CommGear can install and service at an additional charge.

Additional Information
More Information
Part # 2365150 / 2097882
MFR HILTI
Details

Hilti CP 653 2" Firestop Speed Sleeve.

Features:

  • Functional and compliant when properly installed
  • Twist-to-close mechanism – for easier and remote re-penetration while protecting cables
  • Straightforward inspection – you can see if the sleeve is closed without having to check behind a covering fringe above the ceiling
  • Superior smoke tightness and airflow control thanks to its twisting mechanism
  • Smoke gaskets eliminate need for sealant or putty
  • Can be connected end to end

Applications:

  • Firestopping cable penetrations for single and bundled cables
  • Suitable for small to medium-sized circular openings in walls, ceilings and floors
  • For use on concrete, masonry and drywall

Technical Data:

  • Outside diameter: 2.3 in
  • Base materials: Concrete, Masonry, Drywall
  • Corebit diameter: mm
  • Temperature resistance range: -22 - 212 °F
  • Mold and mildew resistant: Yes
  • Expansion temperature (Approx.): 320 °F
  • Expansion ratio (unrestricted, up to): 1:19
  • Shelf life Not relevant: 1
  • Overall length: 12 in
  • Max. core bit diameter: mm
  • Outside diameter (flange): 4.7 in
  • Storage and transportation temperature range: 23 - 122 °F
  • California State fire marshal approval: CSFM Listing 4485-1200:0138 for CP 653 Speed Sleeve
  • Mold and mildew performance: Class 0 (ASTM G21-96)
  • Application temperature range: 23 - 122 °F
  • Smoke resistance: Yes
  • Seismic resistant: Yes
  • Intumescent: Yes
  • Recommended opening size: 63-73 mm

1 at 77°F/25°C and 50% relative humidity; from date of manufacture

Learn More

CommGear can install and service at an additional charge.
