HONEYWELL INTRUSION AND COMMUNICATION SECURITY SYSTEM VISTA-21iP
Featured Products

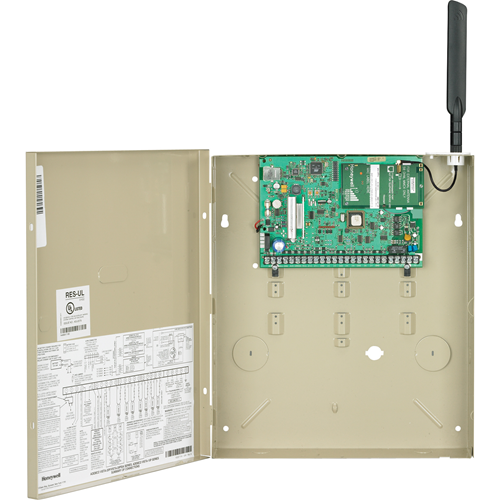

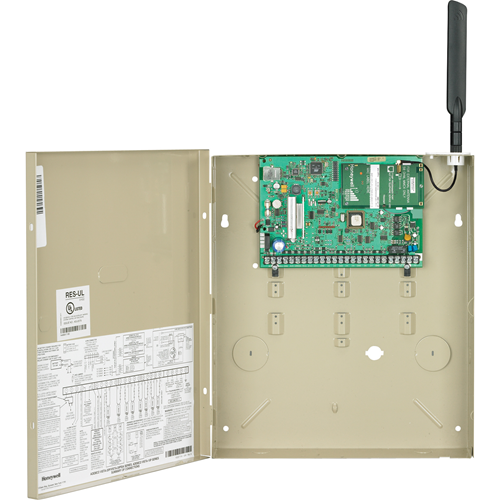

HONEYWELL INTRUSION AND COMMUNICATION SECURITY SYSTEM VISTA-21iP

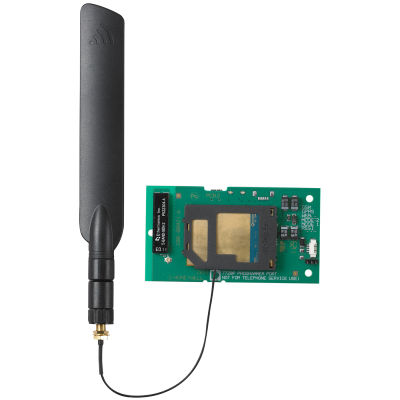

Honeywell’s high capacity, feature-rich VISTA-21iP lets you deliver more value to your customers on each and every sale. The VISTA-21iP provides up to 48 zones of protection, an on-board IP connection, graphic keypad support and dual partitions. The VISTA-21iP gives you the ability to send alarm signals and upload/download via an Internet Protocol (IP), improving the speed at which information can be delivered to and from the control panel. When used with an optional AlarmNet® GSM that snaps right on the board, the VISTA-21iP can be installed in premises without TELCO lines – guaranteeing communication independent of any infrastructure. The panel’s installation advantages, innovative end-user benefits and robust system capacity make the value-priced VISTA-21iP an ideal choice for higher-end installations.
Features
- Internet alarm reporting and uploading/downloading capability via on-board AlarmNet Internet Communicator
- Supports four graphic touchscreen keypads
- Wireless keys can be programmed without using zones
- Eight on-board hardwired zones standard (15 when Zone Doubling feature is used)
– 40 hardwired expansion zones
– 40 wireless expansion zones - Two low current on-board trigger outputs
- 100 Event Log viewable at system keypads with time/date stamp
- 48 system user codes assignable to either partition
- Expandable to 48 total zones when used with hardwired and/or wireless expansion modules
- Two independent partitions plus a common partition
– Global arming from any system keypad
– Goto function to view or operate one partition from the other
– Separate partition account numbers - 16 output devices
– Relays (Model 4204 Relay Modules, or 4229 Expansion Module) - Four installer-configurable zone types allows the installer to create custom zone types by assigning all zone attributes
- Supports four-wire, and up to 16 two-wire smokes
– Works with Sentrol CleanMe™ maintenance signal - Multiple actions on output devices depending on system state
– Turns lights off when system arms
– Turns the same light on when system disarms
– Flashes same lights when system is in alarm - Built-in phone line cut monitor with programmable delay and annunciation options
– Display on system keypads
– Trigger local sounders
– Trigger system bell
Installation and service in North Carolina only.
Check out the Mobotix Cameras! Preprogramming can be done before shipping to site.
Part # | VISTA-21IP |
---|---|
MFR | HONEYWELL |
Honeywell’s high capacity, feature-rich VISTA-21iP lets you deliver more value to your customers on each and every sale. The VISTA-21iP provides up to 48 zones of protection, an on-board IP connection, graphic keypad support and dual partitions. The VISTA-21iP gives you the ability to send alarm signals and upload/download via an Internet Protocol (IP), improving the speed at which information can be delivered to and from the control panel. When used with an optional AlarmNet® GSM that snaps right on the board, the VISTA-21iP can be installed in premises without TELCO lines – guaranteeing communication independent of any infrastructure. The panel’s installation advantages, innovative end-user benefits and robust system capacity make the value-priced VISTA-21iP an ideal choice for higher-end installations.
Features
- Internet alarm reporting and uploading/downloading capability via on-board AlarmNet Internet Communicator
- Supports four graphic touchscreen keypads
- Wireless keys can be programmed without using zones
- Eight on-board hardwired zones standard (15 when Zone Doubling feature is used)
– 40 hardwired expansion zones
– 40 wireless expansion zones - Two low current on-board trigger outputs
- 100 Event Log viewable at system keypads with time/date stamp
- 48 system user codes assignable to either partition
- Expandable to 48 total zones when used with hardwired and/or wireless expansion modules
- Two independent partitions plus a common partition
– Global arming from any system keypad
– Goto function to view or operate one partition from the other
– Separate partition account numbers - 16 output devices
– Relays (Model 4204 Relay Modules, or 4229 Expansion Module) - Four installer-configurable zone types allows the installer to create custom zone types by assigning all zone attributes
- Supports four-wire, and up to 16 two-wire smokes
– Works with Sentrol CleanMe™ maintenance signal - Multiple actions on output devices depending on system state
– Turns lights off when system arms
– Turns the same light on when system disarms
– Flashes same lights when system is in alarm - Built-in phone line cut monitor with programmable delay and annunciation options
– Display on system keypads
– Trigger local sounders
– Trigger system bell
Installation and service in North Carolina only.
Check out the Mobotix Cameras! Preprogramming can be done before shipping to site.
