MOBOTIX B119 THERMAL 25° LENS FOR S16 (NEW)
Featured Products

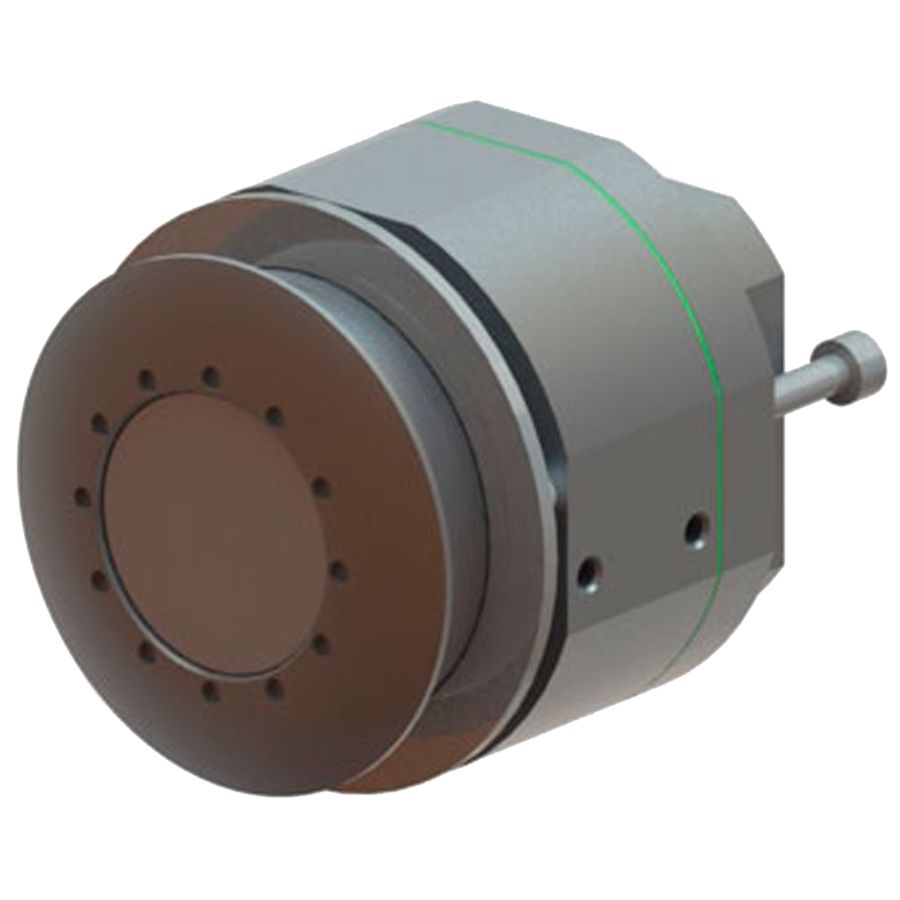

MOBOTIX B119 THERMAL 25° LENS FOR S16 (NEW)
Thermal Sensor Module For S16/S15, 50 mK, B119 (25°).
Suitable for: S16/S15 to be ordered individually)
- Highly sensitive thermal image sensor: NETD typ. 50 mK, <79 mK, IR range 7.5 to 13.5 micrometer, uncooled micro bolometer, up to 9 frames per second
- Germanium Lens (included): B119, horizontal/vertical image angle 25°/19°
- Image size: 336 x 252 pixels (can be scaled up to 6MP)
- IP66, -30 to 60°C (-22 to 140°F)
- Housing: black anodized aluminum
- Camera connection via MOBOTIX sensor cable (max. 3 m/9.8 ft, to be ordered individually)
for FlexMount S16
- Enhanced S16 system solution based on the latest MOBOTIX thermografic image technology
- Highly sensitive thermal image sensor: NETD typ. 50 mK, <79 mK, IR range 7.5 to 13.5 micrometer, uncooled micro bolometer, up to 9 frames per second
- One or two BlockFlexMount sensor modules are connected to the S15 with a sensor cable just like the standard sensor modules
- Can be mounted in a weatherproof way without additional accessories
- Protection class IP66, ambient temperature range: -30°C to +60°C/-22°F to +140°F
- Housing: black anodized aluminum
In combination with the camera firmware version 4.2.1.43 or higher, every previously delivered S15 can operate with the new thermal sensor modules and be converted into a high-end thermographic camera.
Installation and service in North Carolina only. Preprogramming can be done before shipping to site.
Replaces MX-SM-Thermal-L65.
| Part # | Mx-O-SMA-TS-T119 |
|---|---|
| MFR | MOBOTIX |
Thermal Sensor Module For S16/S15, 50 mK, B119 (25°).
Suitable for: S16/S15 to be ordered individually)
- Highly sensitive thermal image sensor: NETD typ. 50 mK, <79 mK, IR range 7.5 to 13.5 micrometer, uncooled micro bolometer, up to 9 frames per second
- Germanium Lens (included): B119, horizontal/vertical image angle 25°/19°
- Image size: 336 x 252 pixels (can be scaled up to 6MP)
- IP66, -30 to 60°C (-22 to 140°F)
- Housing: black anodized aluminum
- Camera connection via MOBOTIX sensor cable (max. 3 m/9.8 ft, to be ordered individually)
for FlexMount S16
- Enhanced S16 system solution based on the latest MOBOTIX thermografic image technology
- Highly sensitive thermal image sensor: NETD typ. 50 mK, <79 mK, IR range 7.5 to 13.5 micrometer, uncooled micro bolometer, up to 9 frames per second
- One or two BlockFlexMount sensor modules are connected to the S15 with a sensor cable just like the standard sensor modules
- Can be mounted in a weatherproof way without additional accessories
- Protection class IP66, ambient temperature range: -30°C to +60°C/-22°F to +140°F
- Housing: black anodized aluminum
In combination with the camera firmware version 4.2.1.43 or higher, every previously delivered S15 can operate with the new thermal sensor modules and be converted into a high-end thermographic camera.
Installation and service in North Carolina only. Preprogramming can be done before shipping to site.
Replaces MX-SM-Thermal-L65.
