MOBOTIX B237 15° 6MP NIGHT LPF FOR D16 (NEW)

Part # Mx-O-SDA-S-6L237

In Stock

Be the first to review this product

$389.00

Notify Price Drop

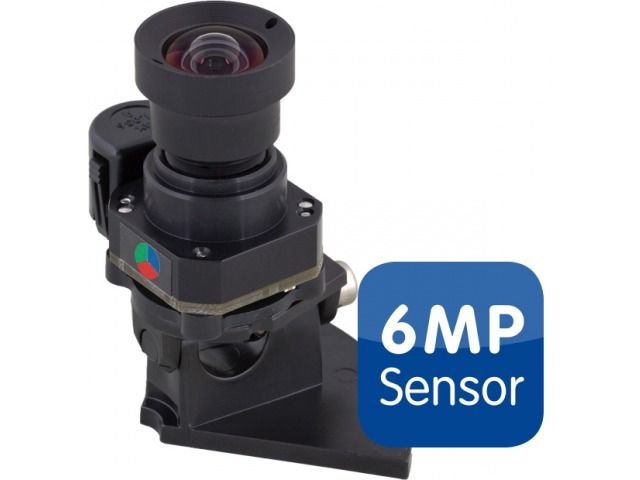

Sensor module D16/D15 with HD premium lens B237 (f/1.8, horiz. image angle 15°) and Moonlight sensor night, 6MP (3072 x 2048), LPF special lens, e.g., for license plate detection (with infrared).

Lenses from Super Wide Angle (105°) to Tele (15°) for all MOBOTIX cameras.

Lens	Type	Angle	Focal Length	Image width
		[H x V]	≙ 35mm equivalent	[in a distance of 10 m]
L20	Super Wide Angle 105°	105° x 77°	f = 4 mm (≙ 20 mm)
L22	Super Wide Angle 90°	90° x 67°	f = 4 mm (≙ 22 mm)	20 m x 13.3 m
L32	Wide Angle 60°	60° x 45°	f = 6 mm (≙ 32 mm)	11.5 m x 8.2 m
L43	Wide Angle 45°	45° x 35°	f = 8 mm (≙ 43 mm)	8.2 m x 6.1 m
L65	Tele 31°	31° x 23°	f = 12 mm (≙ 65 mm)	5.5 m x 4 m
L135	Tele 15°	15° x 11°	f = 25 mm (≙ 135 mm)	2.6 m x 1.9 m

Note: In the color sensors, the infrared CUT filter is NOT in the lens, but rather already installed in the lens casing in the camera.

Learn More

Installation and service in North Carolina only. Preprogramming can be done before shipping to site.

Replaces MX-D15-Module-N135-LPF-6MP-F1.8.

Additional Information

More Information
Part #	Mx-O-SDA-S-6L237
MFR	MOBOTIX

Details

Sensor module D16/D15 with HD premium lens B237 (f/1.8, horiz. image angle 15°) and Moonlight sensor night, 6MP (3072 x 2048), LPF special lens, e.g., for license plate detection (with infrared).

Lenses from Super Wide Angle (105°) to Tele (15°) for all MOBOTIX cameras.

Lens	Type	Angle	Focal Length	Image width
		[H x V]	≙ 35mm equivalent	[in a distance of 10 m]
L20	Super Wide Angle 105°	105° x 77°	f = 4 mm (≙ 20 mm)
L22	Super Wide Angle 90°	90° x 67°	f = 4 mm (≙ 22 mm)	20 m x 13.3 m
L32	Wide Angle 60°	60° x 45°	f = 6 mm (≙ 32 mm)	11.5 m x 8.2 m
L43	Wide Angle 45°	45° x 35°	f = 8 mm (≙ 43 mm)	8.2 m x 6.1 m
L65	Tele 31°	31° x 23°	f = 12 mm (≙ 65 mm)	5.5 m x 4 m
L135	Tele 15°	15° x 11°	f = 25 mm (≙ 135 mm)	2.6 m x 1.9 m
