BOSE CEILING MOUNT FOR FREESPACE DS40F/DS100F LOUDSPEAKER (WHITE)
Paging
BOSE CEILING MOUNT FOR FREESPACE DS40F/DS100F LOUDSPEAKER (WHITE)
- Buy 2 for $57.00 each and save 2%
- Buy 4 for $56.00 each and save 3%
- Buy 10 for $55.00 each and save 5%

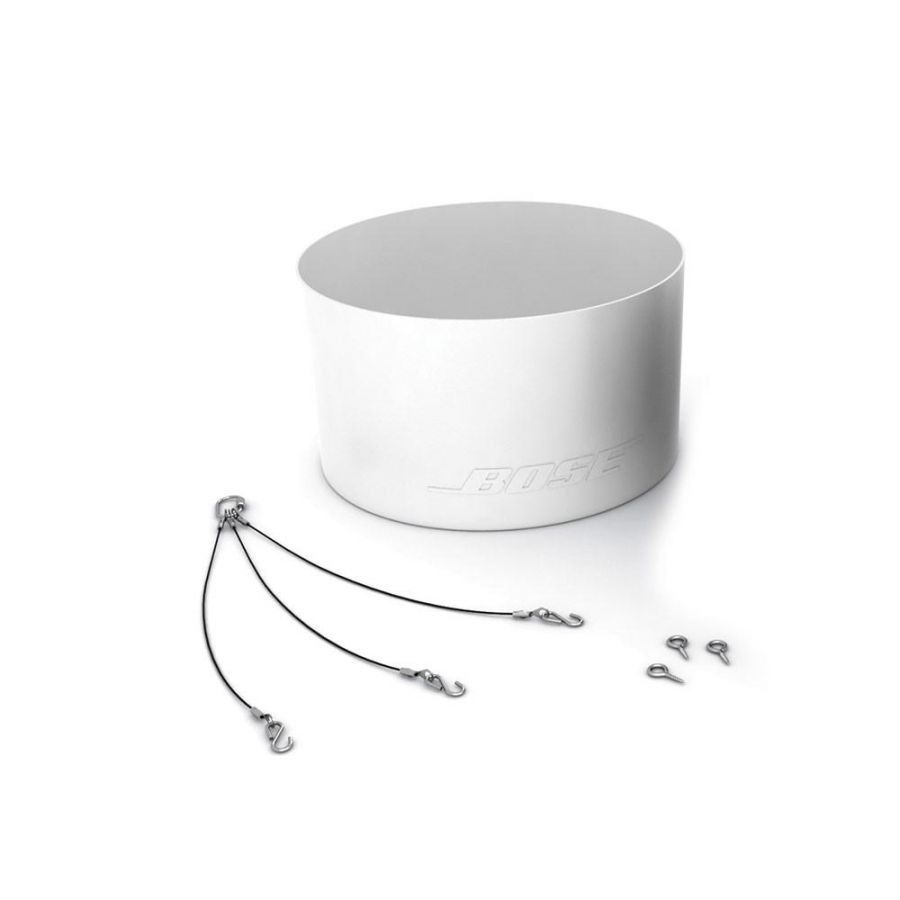

Pendant mounting kit for the FreeSpace DS40F or DS100F ceiling speakers. Suspension hardware and loudspeaker cosmetic cover designed for hanging DS40F and DS100F loudspeakers from open ceilings.
Versatile, high-performance, full-range, flush-mount loudspeaker designed for foreground and background music and speech reproduction in a wide range of installed applications. High output and 125° conical pattern with a frequency range down to 70 Hz.
For indoor applications only.
EN 54-24 compliant DS loudspeaker models are also available for use in Voice Alarm (VA) systems. Please contact your local Bose team for availability information.
Features:
- Full-range loudspeaker with a single 4.5" (114 mm) driver in a ported enclosure to deliver a 125° conical coverage pattern and clear, intelligible music and speech reproduction for flush-ceiling or pendant-mount applications
-
Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap setting from underneath the loudspeaker grille
- Shortcan design allows installation in shallower ceilings with minimum depth of 6.4" (163 mm)
- Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality
- Supported by a suite of accessories, including ceiling-mount bracket, adjustable tile bridge, pendant-mount kit and square grille
Applications:
- Retail stores
- Restaurants and bars
- Concourse
- Transportation facilities
- Resorts and hospitality venues
- Houses of worship
- Ballrooms
Specifications:
- Long-Term Power Handling: 40 W (160 W peak)
- Nominal Impedance (tranSensitivity (SPL / 1 W @ 1 m)
- Sensitivity (at 1W @ 1m): 87 dB SPL
- Maximum SPL (pink noise @ 1m @ rated power): 103 dB SPL (109 dB SPL peak)
- Frequency Range (-10 dB): 70 Hz to 19 kHz
- Frequency Response (+/–3 dB): 80 Hz to 17 kHz
- Nominal Dispersion: 125° conical
- Driver Complement: 114 mm (4.5”) full-range driver
- Construction Features: Enclosure: Engineered plastics (paintable), powder-coated steel (rear enclosure)
- Grille: Powder-coated steel grille (paintable)
- Indoor use only
- Three mounting points at the rear of the housing for pendant mounting
- Dimensions:
- Outer Flange diameter: 11.8"
- Ceiling Hole diameter: 10.5"
- Height to top of housing: 6.0"
- Weight: 8.0 lbs; 10.7 lbs shipping
- Package Contents: Loudspeaker, installation guide
- Finish: Textured black with a contoured, powder-coated steel grille. Both the enclosure and grille can be painted
- Connectors:
- Three-terminal barrier strip; two-terminal barrier strip (8 Ω variant)
- Optional accessory available for use when ceramic connector and thermal fuse are required.
- Wire gauge: 18 AWG (0.8 mm) to 14 AWG (2.0 mm)
