TOA BG-2480D 480 WATT HIGH POWER MIXER / AMPLIFIER
Featured Products
TOA BG-2480D 480 WATT HIGH POWER MIXER / AMPLIFIER

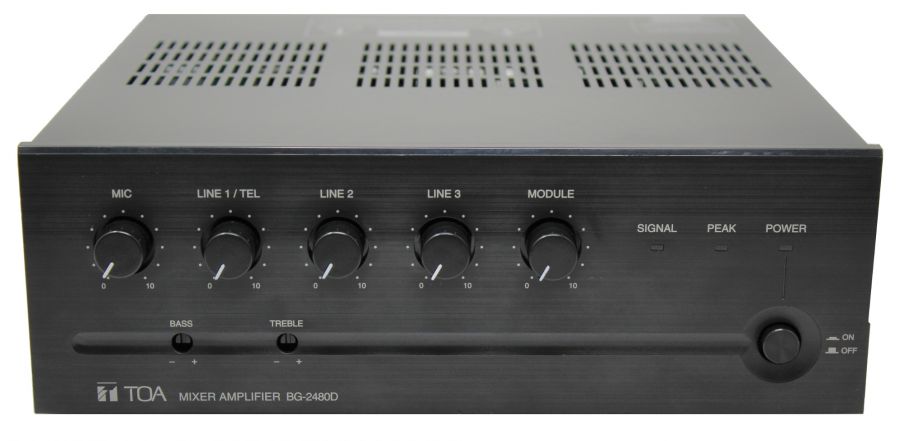

TOA's BG-2480D (480W) is a high power, D-class amplifier which is lighter, more efficient and cooler running than conventional amplifiers. The BG-2480D has the same basic feature set as analog BG-2000 models, including: Dual balanced priority mic / line inputs, dual unbalanced line inputs, assignable 2nd zone / MOH output, front panel bass and treble controls, remote volume control port, assignable mute function and a 900 series input module slot (output modules not compatible).
This 5-input mixer amplifier is designed for background music distribution and general announcements in commercial spaces such as bars / restaurants, retail stores and hospitality facilities. It is also equipped with an MOH output that permits two independent zones when used in conjunction with an optional external power amplifier with a line level analog audio input.
- 480W output @ 4Ω, 70V
- Dual balanced priority mic / line inputs
- Dual unbalanced line inputs for BGM sources
- Rear panel-mounted DIP switches allow easy configuring of settings
- Provides auto / manual mute function with adjustable muting sensitivity
- Incorporates Remote volume control connection
- 2-channel broadcast capability together with zone 2 expansion capability in conjunction with BA-200 Series
- Tamper-proof, front-panel bass and treble controls are recessed to protect their settings
- Thermal protection circuitry prevents potential damage from excessive heat build-up
- AC Mains Circuit Breaker
- Supplied accessory security knobs for volume controls prevent unauthorized volume setting changes
- Remote volume control port (AT-10K)
- Assignable mute function
- Module slot accepts optional 900 Series plug-in modules for custom system configuration
Do you need Speakers? Cabling? CommGear sells them. Install and service at an additional charge.
| Part # | BG-2480DAM |
|---|---|
| MFR | TOA |
TOA's BG-2480D (480W) is a high power, D-class amplifier which is lighter, more efficient and cooler running than conventional amplifiers. The BG-2480D has the same basic feature set as analog BG-2000 models, including: Dual balanced priority mic / line inputs, dual unbalanced line inputs, assignable 2nd zone / MOH output, front panel bass and treble controls, remote volume control port, assignable mute function and a 900 series input module slot (output modules not compatible).
This 5-input mixer amplifier is designed for background music distribution and general announcements in commercial spaces such as bars / restaurants, retail stores and hospitality facilities. It is also equipped with an MOH output that permits two independent zones when used in conjunction with an optional external power amplifier with a line level analog audio input.
- 480W output @ 4Ω, 70V
- Dual balanced priority mic / line inputs
- Dual unbalanced line inputs for BGM sources
- Rear panel-mounted DIP switches allow easy configuring of settings
- Provides auto / manual mute function with adjustable muting sensitivity
- Incorporates Remote volume control connection
- 2-channel broadcast capability together with zone 2 expansion capability in conjunction with BA-200 Series
- Tamper-proof, front-panel bass and treble controls are recessed to protect their settings
- Thermal protection circuitry prevents potential damage from excessive heat build-up
- AC Mains Circuit Breaker
- Supplied accessory security knobs for volume controls prevent unauthorized volume setting changes
- Remote volume control port (AT-10K)
- Assignable mute function
- Module slot accepts optional 900 Series plug-in modules for custom system configuration
Do you need Speakers? Cabling? CommGear sells them. Install and service at an additional charge.
