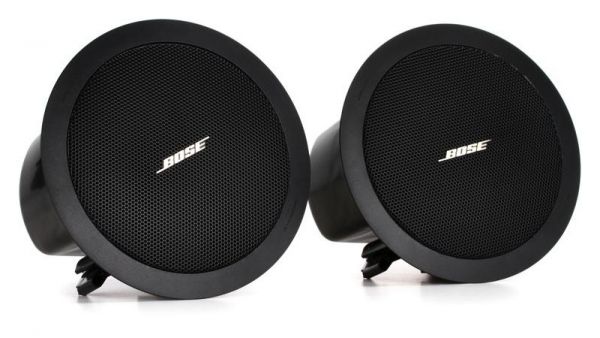

BOSE FREESPACE FS2CB LOUDSPEAKERS (BLACK) (PAIR)
Featured Products
BOSE FREESPACE FS2CB LOUDSPEAKERS (BLACK) (PAIR)
- Buy 2 for $228.00 each and save 1%
- Buy 4 for $227.00 each and save 1%
- Buy 5 for $226.00 each and save 2%
- Buy 10 for $225.00 each and save 2%
- Buy 20 for $224.00 each and save 3%
- Buy 30 for $223.00 each and save 3%
- Buy 50 for $222.00 each and save 3%
- Buy 75 for $221.00 each and save 4%

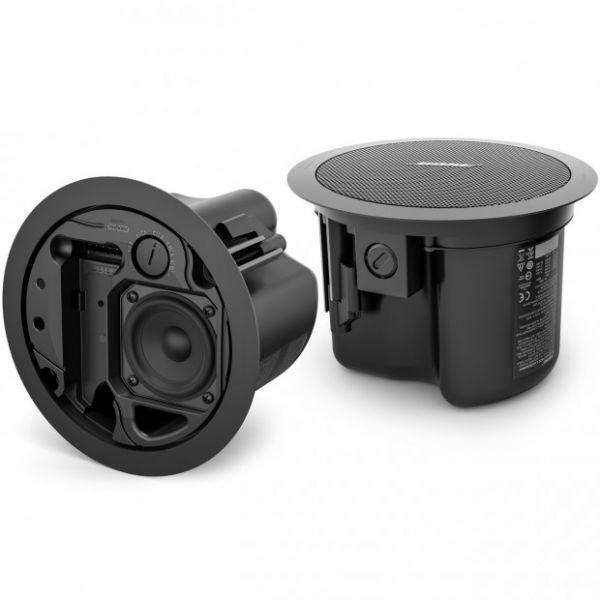

FreeSpace FS loudspeakers are the next step of our widely trusted line of in-ceiling and surface-mount loudspeakers, offering significant upgrades in durability, design, and ease of installation — all with remarkably consistent tonality. Engineered for high-quality performance in both background music and voice announcement applications, FS loudspeakers are ideal for almost any commercial space. The line includes five loudspeakers, two distinct levels of sound, new mounting options, and a modern aesthetic to match. For those seeking consistent, quality installed sound, FreeSpace FS loudspeakers are the perfect mix of performance and value.
Features:
- 16-watt, 16-ohm in-ceiling speaker
- Represents the next generation of in-ceiling speakers from Bose
- Tailor-made for background music and voice announcements
- Full-range 2.25-inch driver meticulously reproduces the 83Hz-19kHz range
- 180-degree nominal coverage ensures a great listening experience everywhere in the room
- Shared voicing across all FS models maintains consistent sound quality
- Euroblock inputs and front-baffle connectors for easy installation
- Works with a wide range of amplifiers
- 16-ohm design allows for four units to be installed on a single low-impedance line
- Combined 70V/100V and low-impedance operation for added versatility
Applications:
- The FreeSpace FS2C loudspeaker is well-suited for permanent installations in: Retail stores
- Transportation facilities
- Hospitality venues, Concourses, Restaurants, Houses of worship
Specifications:
- Frequency Response (-3 dB): 95 – 18,000 Hz
- Frequency Range (-10 dB): 85 – 19,000 Hz
- Nominal Coverage Angle: 180°
- Nominal Coverage (1 - 10 kHz): 165°
- Power Handling, Long-Term Continuous:
- Bose extended-life cycle test: 16W
- AES transducer test: 20W
- Power Handling, Peak:
- Bose extended-life cycle test: 64W
- AES transducer test: 80W
- Sensitivity (SPL/1W @ 1 m):
- Bose extended-life cycle test: 84 dB
- AES transducer test: 84 dB
- Calculated Maximum SPL @ 1 m:
- Bose extended-life cycle test: 96 dB
- AES transducer test: 97 dB
- Calculated Maximum SPL @ 1 m, Peak:
- Bose extended-life cycle test: 102 dB
- AES transducer test: 103 dB
- Loudspeaker EQ: Not Required, Bose EQ Voicing and SmartBass available
- Recommended High-Pass Protection: 85 Hz with minimum 24-dB/octave filter
- Transformer taps:
- 70V: 1, 2, 4, 8, 16W, bypass
- 100V: 2, 4, 8, 16W, bypass
- Full-Range Driver: 1 x 2.25-inch woofer (57 mm)
- Nominal Impedance: 16 ohms (transformer bypass)
- Enclosure Material: Enclosure Material Engineered-plastics front baffle with integrated steel formed back can
- Grille: Perforated steel, powder-coated finish
- Logo: Rotatable, removable
- Color: White: similar to Ral 9003
- Environmental: Indoor only
- Safety Agency: Certification:
- UL 1480, ULC-S541 for Fire Alarm and Signaling Systems
- Installation: NFPA 70, NFPA 72, CSA C22.1 Section 32, in accordance with IEC60268-5, CE RoHS
- Operating Temperature Range: 0 °C to 50 °C (32 °F to 122 °F)
- Connectors:
- Euro block 6-pin connector with loop-through, front-baffle mounted
- Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire
- Wire/Conduit Entry: Top and side wire entry point 1/2-inch knockouts allow for 9.5 mm (3/8 in) conduit and fittings
- Suspension/Mounting: Two (2) standard mounting arms plus one (1) safety cable tab
- Optional Accessories: Adjustable Tile-Bridge 6-Pack, DesignMax DM2CRI Rough-in kit 6-pack, Retrofit Kit, Ceramic terminal w/ Fuse kit
- Maximum Ceiling Thickness: 1.5" (38 mm)
- Ceiling Cutout: 6.5" (165 mm)
- Backcan Dimensions (Dia x D): 6.10" (155 mm) x 4.92" (125 mm)
- Dimensions (Baffle Dia x D): 7.2" (183 mm) x 5.2" (132 mm)
- Net Weight: 3.6 lbs (1.63 kg)
- Shipping Weight (Pair): 9.7 lbs (4.4 kg)
Do you need an Amplifier? CommGear sells them. Install and service at an additional charge.
Replaces DS16F #BOS043053 / 43053.
Part # | 841154-0310 |
---|---|
MFR | BOSE |
