HILTI ADH HY 200-A V3 INJECTABLE ADHESIVE ANCHOR WITH HDE 500 KIT
Part # 3778129
In Stock
Special Price2131
$3,878.00
Regular Price
$3,928.00
- Buy 2 for $3,828.00 each and save 1%
- Buy 3 for $3,778.00 each and save 3%
- Buy 5 for $3,728.00 each and save 4%

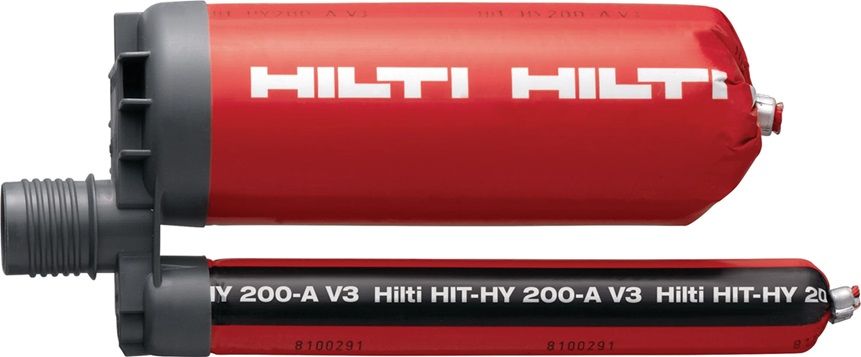

Hilti ADH HY 200-A V3 Injectable Adhesive Anchor with HDE 500 Kit.
Ultimate performance hybrid mortar for heavy anchoring and rebar connections
Features:
- Faster curing - optimized for anchoring applications in dry concrete, wet concrete, or water filled drill holes, with a wide working temperature range (-10°C to +40°C).
- Easier to specify and order – use PROFIS Engineering to design steel to concrete or concrete to concrete connections according to EC2, TR069, TR082 or the Hilti Design Method
- Versatile adhesive anchor for wide ranging conditions - approved for hammer drilled, hollow drilled, and diamond cored holes (with TE-YRT).
- Faster, simpler, and safer installations – combine with our fully cordless SafeSet system for a seamless installation solution to reduce time on-site and installation errors
- Extensive approvals available - including ETA for cracked and uncracked concrete, seismic C2, fire resistance data, and with service life up to 100 years in rebar and anchor
Applications:
- Anchoring structural steel connections (e.g. steel columns, beams) to concrete
- Fastening secondary steel structures (e.g. racking, machinery, guard rails, sound barriers) to concrete
- Concrete connections designed both as rigid and as simply supported
- Strengthening concrete and retrofitting reinforced concrete buildings, including replacing misplaced/missing cast-in rebar with post-installed rebar
- Structural concrete connections with post-installed rebar
Technical Data:
- Base materials: Concrete (cracked), Concrete (lightweight), Concrete (uncracked), Masonry (grout-filled CMU)
- Base material condition: Dry, Water-filled, WetApprovals / Test reportsDOT approval (contact Hilti), ICC-ES report (concrete), ICC-ES report (masonry), LABC, Seismic
- Seismic loading: Yes
- PROFIS Software: Yes
- Clean-Tec: No
- Anchoring elements: HAS threaded rods, HIS-N internally threaded sleeves, HIT-V threaded rods, HIT-Z torque controlled bonded anchors, Rebar:
- Cleaning procedures: Automatic Cleaning (SafeSet Hollow Drill Bit), Compressed-Air Cleaning, Non Cleaning:
- Storage and transportation temperature range: 41 - 77 °F
- In-service temperature – range: -40 - 248 °F
- Shelf life from date of manufacture (at 73°F/23°C and 50% relative humidity): 12 months
- Product Class: Ultimate
Package contents:
- 1x HDE 500-22 HNA Cordless dispenser assembly
- 1x C 4-22 02 110-127V Battery charger
- 40x Foil pack
- 40x Mixer
- 40x Mixer extension
- 1x 500ml Cassette red
- 1x B 22-55 Li-ion Battery pack
Do you need a Mortar Cartridge? CommGear sells them.
Replaces part #3496593.
Additional Information
Part # | 3778129 |
---|---|
MFR | HILTI |
Details
Hilti ADH HY 200-A V3 Injectable Adhesive Anchor with HDE 500 Kit.
Ultimate performance hybrid mortar for heavy anchoring and rebar connections
Features:
- Faster curing - optimized for anchoring applications in dry concrete, wet concrete, or water filled drill holes, with a wide working temperature range (-10°C to +40°C).
- Easier to specify and order – use PROFIS Engineering to design steel to concrete or concrete to concrete connections according to EC2, TR069, TR082 or the Hilti Design Method
- Versatile adhesive anchor for wide ranging conditions - approved for hammer drilled, hollow drilled, and diamond cored holes (with TE-YRT).
- Faster, simpler, and safer installations – combine with our fully cordless SafeSet system for a seamless installation solution to reduce time on-site and installation errors
- Extensive approvals available - including ETA for cracked and uncracked concrete, seismic C2, fire resistance data, and with service life up to 100 years in rebar and anchor
Applications:
- Anchoring structural steel connections (e.g. steel columns, beams) to concrete
- Fastening secondary steel structures (e.g. racking, machinery, guard rails, sound barriers) to concrete
- Concrete connections designed both as rigid and as simply supported
- Strengthening concrete and retrofitting reinforced concrete buildings, including replacing misplaced/missing cast-in rebar with post-installed rebar
- Structural concrete connections with post-installed rebar
Technical Data:
- Base materials: Concrete (cracked), Concrete (lightweight), Concrete (uncracked), Masonry (grout-filled CMU)
- Base material condition: Dry, Water-filled, WetApprovals / Test reportsDOT approval (contact Hilti), ICC-ES report (concrete), ICC-ES report (masonry), LABC, Seismic
- Seismic loading: Yes
- PROFIS Software: Yes
- Clean-Tec: No
- Anchoring elements: HAS threaded rods, HIS-N internally threaded sleeves, HIT-V threaded rods, HIT-Z torque controlled bonded anchors, Rebar:
- Cleaning procedures: Automatic Cleaning (SafeSet Hollow Drill Bit), Compressed-Air Cleaning, Non Cleaning:
- Storage and transportation temperature range: 41 - 77 °F
- In-service temperature – range: -40 - 248 °F
- Shelf life from date of manufacture (at 73°F/23°C and 50% relative humidity): 12 months
- Product Class: Ultimate
Package contents:
- 1x HDE 500-22 HNA Cordless dispenser assembly
- 1x C 4-22 02 110-127V Battery charger
- 40x Foil pack
- 40x Mixer
- 40x Mixer extension
- 1x 500ml Cassette red
- 1x B 22-55 Li-ion Battery pack
Do you need a Mortar Cartridge? CommGear sells them.
Replaces part #3496593.
