HILTI FIRESTOP FS COLLAR CP 643N 6" (10 PK)
Hilti Firestop Collars
HILTI FIRESTOP FS COLLAR CP 643N 6" (10 PK)
Part # 283215
In Stock
Special Price2131
$1,132.00
Regular Price
$1,137.00
- Buy 2 for $1,127.00 each and save 0%
- Buy 3 for $1,122.00 each and save 1%
- Buy 5 for $1,117.00 each and save 1%

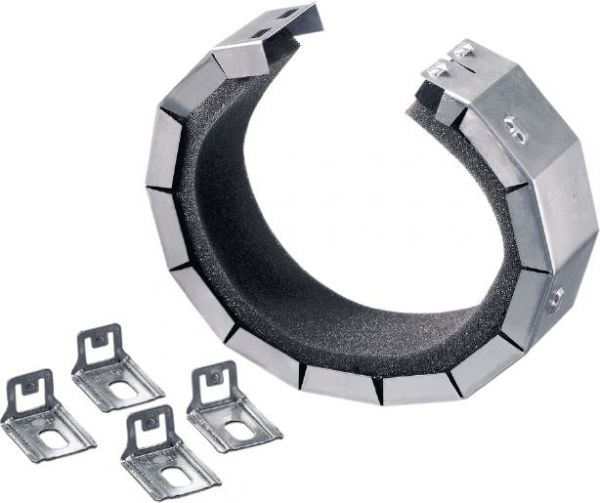

Hilti Firestop FS Collar CP 643N 6" (10 PK).
Features:
- Ready-to-use product
- Latch mechanism for quick and easy closure
- Flexible tab positioning for convenient fastening
- Allows correct installation where space is tight
Applications:
- For use in walls and floors
- Plastic pipes with diameters from 32 - 160 mm

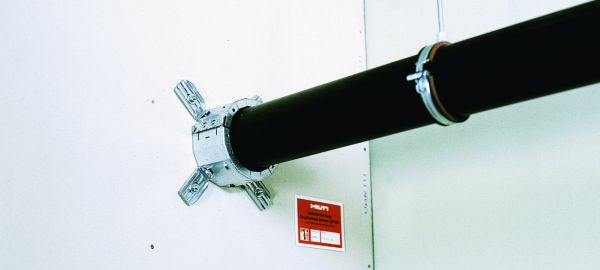

- Firestopping where combustible pipes pass through fire-rated walls and floors
- Waste water pipes, fresh water pipes, drinking water pipes
Technical Data:
- Temperature resistance range: -4 - 212 °F
- Expansion temperature (Approx.): 482 °F
- Expansion ratio (unrestricted, up to): 1:17
- Mold and mildew resistance: Yes
- Tested in accordance with: UL 1479 , CAN/ULC-S115 , ASTM E814 , ASTM G21
- Shelf life: Not relevant 1
- Pipe diameter - range: 4.92 - 5.98 in
- Mold and mildew performance: Class 0 (ASTM G21-96) and Class 0 (EN ISO 846)
- California State fire marshal approval: 4485-1200:0131 , CSFM Listing 4485-1200:0128 for CP 643N and CP 644 Firestop Collar
- City of New York approval: CP643N MEA 630-06-M
- Application temperature range: 23 - 122 °F
- Can be painted: No
- Storage and transportation temperature range: 23 - 122 °F
- Pipe diameter - min: 4.92 in
- LEED VOC0.06 lb/gal (US)Intumescent: Yes
- Pipe diameter - max: 5.98 in
- Base materials: Concrete , Drywall , Masonry
CommGear can install and service at an additional charge.
Additional Information
| Part # | 283215 |
|---|---|
| MFR | HILTI |
Details
Hilti Firestop FS Collar CP 643N 6" (10 PK).
Features:
- Ready-to-use product
- Latch mechanism for quick and easy closure
- Flexible tab positioning for convenient fastening
- Allows correct installation where space is tight
Applications:
- For use in walls and floors
- Plastic pipes with diameters from 32 - 160 mm
- Firestopping where combustible pipes pass through fire-rated walls and floors
- Waste water pipes, fresh water pipes, drinking water pipes
Technical Data:
- Temperature resistance range: -4 - 212 °F
- Expansion temperature (Approx.): 482 °F
- Expansion ratio (unrestricted, up to): 1:17
- Mold and mildew resistance: Yes
- Tested in accordance with: UL 1479 , CAN/ULC-S115 , ASTM E814 , ASTM G21
- Shelf life: Not relevant 1
- Pipe diameter - range: 4.92 - 5.98 in
- Mold and mildew performance: Class 0 (ASTM G21-96) and Class 0 (EN ISO 846)
- California State fire marshal approval: 4485-1200:0131 , CSFM Listing 4485-1200:0128 for CP 643N and CP 644 Firestop Collar
- City of New York approval: CP643N MEA 630-06-M
- Application temperature range: 23 - 122 °F
- Can be painted: No
- Storage and transportation temperature range: 23 - 122 °F
- Pipe diameter - min: 4.92 in
- LEED VOC0.06 lb/gal (US)Intumescent: Yes
- Pipe diameter - max: 5.98 in
- Base materials: Concrete , Drywall , Masonry
CommGear can install and service at an additional charge.
