HILTI ADH HY 200-R V3 INJECTABLE ADHESIVE ANCHOR WITH HDE 500 KIT
Hilti Mortar & Adhesive
HILTI ADH HY 200-R V3 INJECTABLE ADHESIVE ANCHOR WITH HDE 500 KIT
Part # 3778137
In Stock
Special Price2131
$3,838.00
Regular Price
$3,938.00
- Buy 2 for $3,738.00 each and save 3%
- Buy 3 for $3,638.00 each and save 5%
- Buy 5 for $3,538.00 each and save 8%

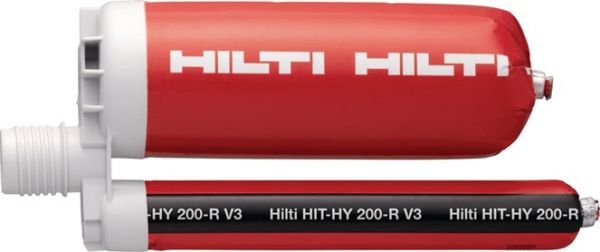

Hilti ADH HY 200-R V3 Injectable Adhesive Anchor with HDE 500 Kit.
Ultimate performance hybrid mortar for rebar connections and heavy anchoring
Features:
- Optimized embedment depth – higher mortar strength makes more efficient embedment depths possible and may help post-installed rebar perform better than cast-in bars
- Easier to specify and order – use PROFIS Engineering to design steel to concrete or concrete to concrete connections according to ACI or the Hilti Design Method
- Optimized for post-installed rebar – longer working time for rebar applications in dry concrete, wet concrete, or water filled drill holes, with a wide working temperature range from (+14°F to +104°F)
- Extensive approvals available – including ICC-ES ESR for cracked and uncracked concrete, grout-filled masonry, and seismic category A-F
- No hole cleaning required - pair with HIT-Z anchor rods or drill with hollow drill bit and a compatible vacuum cleaner for faster workflows
Applications:
- Structural concrete connections with post-installed rebar
- Fastening secondary steel structures (e.g. racking, machinery, guard rails, sound barriers) to concrete
- Anchoring structural steel connections (e.g. steel columns, beams) to concrete
- Strengthening concrete and retrofitting reinforced concrete buildings, including replacing misplaced/missing cast-in rebar with post-installed rebar
- Concrete connections designed both as rigid and as simply supported
Technical Data:
- Base materials: Concrete (cracked), Concrete (lightweight), Concrete (uncracked)
- Base material condition: Dry, Water-filled, WetApprovals / Test reportsDOT approval (contact Hilti), ICC-ES report (concrete), ICC-ES report (masonry), LABC, Seismic
- Seismic loading: Yes
- PROFIS Software: Yes
- Clean-Tec: No
- Anchoring elements: HIS-N internally threaded rods, HIS-N internally threaded sleeves, HIT-Z torque controlled bonded anchors, RebarCleaning procedures
- Automatic Cleaning (SafeSet Hollow Drill Bit), Compressed-Air Cleaning, Manual Cleaning, Non CleaningStorage and transportation temperature range: 41 - 77 °F
- In-service temperature – range: -40 - 248 °F
- Shelf life from date of manufacture (at 73°F/23°C and 50% relative humidity): 12 months
- Product Class: Ultimate
Package contents:
- 1x HDE 500-22 HNA Cordless dispenser assembly
- 1x C 4-22 02 110-127V Battery charger
- 40x Foil pack
- 40x Mixer
- 40x Mixer extension
- 1x 500ml Cassette red
- 1x B 22-55 Li-ion Battery pack
Do you need a Mortar Cartridge? CommGear sells them.
Replaces part #3496603.
Additional Information
Part # | 3778137 |
---|---|
MFR | HILTI |
Details
Hilti ADH HY 200-R V3 Injectable Adhesive Anchor with HDE 500 Kit.
Ultimate performance hybrid mortar for rebar connections and heavy anchoring
Features:
- Optimized embedment depth – higher mortar strength makes more efficient embedment depths possible and may help post-installed rebar perform better than cast-in bars
- Easier to specify and order – use PROFIS Engineering to design steel to concrete or concrete to concrete connections according to ACI or the Hilti Design Method
- Optimized for post-installed rebar – longer working time for rebar applications in dry concrete, wet concrete, or water filled drill holes, with a wide working temperature range from (+14°F to +104°F)
- Extensive approvals available – including ICC-ES ESR for cracked and uncracked concrete, grout-filled masonry, and seismic category A-F
- No hole cleaning required - pair with HIT-Z anchor rods or drill with hollow drill bit and a compatible vacuum cleaner for faster workflows
Applications:
- Structural concrete connections with post-installed rebar
- Fastening secondary steel structures (e.g. racking, machinery, guard rails, sound barriers) to concrete
- Anchoring structural steel connections (e.g. steel columns, beams) to concrete
- Strengthening concrete and retrofitting reinforced concrete buildings, including replacing misplaced/missing cast-in rebar with post-installed rebar
- Concrete connections designed both as rigid and as simply supported
Technical Data:
- Base materials: Concrete (cracked), Concrete (lightweight), Concrete (uncracked)
- Base material condition: Dry, Water-filled, WetApprovals / Test reportsDOT approval (contact Hilti), ICC-ES report (concrete), ICC-ES report (masonry), LABC, Seismic
- Seismic loading: Yes
- PROFIS Software: Yes
- Clean-Tec: No
- Anchoring elements: HIS-N internally threaded rods, HIS-N internally threaded sleeves, HIT-Z torque controlled bonded anchors, RebarCleaning procedures
- Automatic Cleaning (SafeSet Hollow Drill Bit), Compressed-Air Cleaning, Manual Cleaning, Non CleaningStorage and transportation temperature range: 41 - 77 °F
- In-service temperature – range: -40 - 248 °F
- Shelf life from date of manufacture (at 73°F/23°C and 50% relative humidity): 12 months
- Product Class: Ultimate
Package contents:
- 1x HDE 500-22 HNA Cordless dispenser assembly
- 1x C 4-22 02 110-127V Battery charger
- 40x Foil pack
- 40x Mixer
- 40x Mixer extension
- 1x 500ml Cassette red
- 1x B 22-55 Li-ion Battery pack
Do you need a Mortar Cartridge? CommGear sells them.
Replaces part #3496603.
