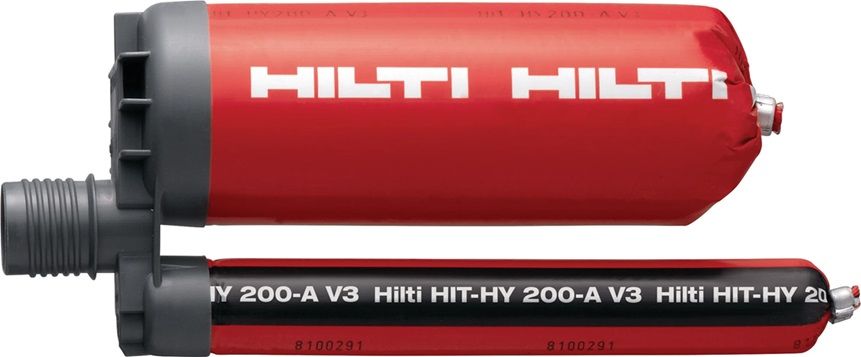

HILTI ADH HY 200-A V3 INJECTABLE ADHESIVE ANCHOR WITH HDE 500 KIT

Part # 3778129

In Stock

Special Price2131 $3,691.00 Regular Price $3,741.00

Hilti ADH HY 200-A V3 Injectable Adhesive Anchor with HDE 500 Kit.

Ultimate performance hybrid mortar for heavy anchoring and rebar connections

Features:

Faster curing - optimized for anchoring applications in dry concrete, wet concrete, or water filled drill holes, with a wide working temperature range (-10°C to +40°C).
Easier to specify and order – use PROFIS Engineering to design steel to concrete or concrete to concrete connections according to EC2, TR069, TR082 or the Hilti Design Method

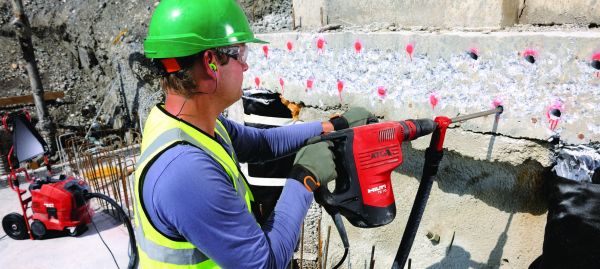

Versatile adhesive anchor for wide ranging conditions - approved for hammer drilled, hollow drilled, and diamond cored holes (with TE-YRT).
Faster, simpler, and safer installations – combine with our fully cordless SafeSet system for a seamless installation solution to reduce time on-site and installation errors
Extensive approvals available - including ETA for cracked and uncracked concrete, seismic C2, fire resistance data, and with service life up to 100 years in rebar and anchor

Applications:

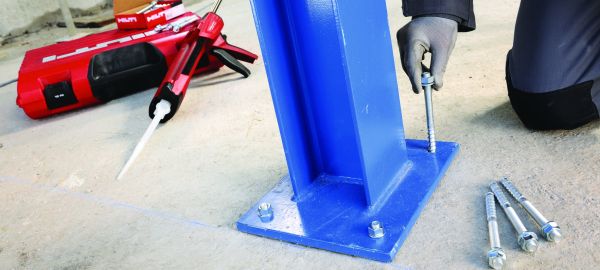

Anchoring structural steel connections (e.g. steel columns, beams) to concrete
Fastening secondary steel structures (e.g. racking, machinery, guard rails, sound barriers) to concrete
Concrete connections designed both as rigid and as simply supported
Strengthening concrete and retrofitting reinforced concrete buildings, including replacing misplaced/missing cast-in rebar with post-installed rebar

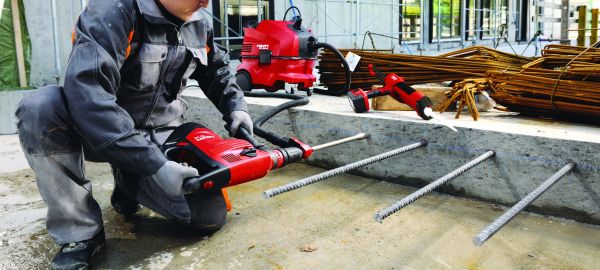

Structural concrete connections with post-installed rebar

Technical Data

Base materials: Concrete (cracked), Concrete (lightweight), Concrete (uncracked), Masonry (grout-filled CMU)
Base material condition: Dry, Water-filled, WetApprovals / Test reportsDOT approval (contact Hilti), ICC-ES report (concrete), ICC-ES report (masonry), LABC, Seismic
Seismic loading: Yes
PROFIS Software: Yes
Clean-Tec: No
Anchoring elements: HAS threaded rods, HIS-N internally threaded sleeves, HIT-V threaded rods, HIT-Z torque controlled bonded anchors, Rebar:
Cleaning procedures: Automatic Cleaning (SafeSet Hollow Drill Bit), Compressed-Air Cleaning, Non Cleaning:
Storage and transportation temperature range: 41 - 77 °F
In-service temperature – range: -40 - 248 °F
Shelf life from date of manufacture (at 73°F/23°C and 50% relative humidity): 12 months
Product Class: Ultimate

Package contents

Do you need a Mortar Cartridge? CommGear sells them.

Replaces part #3496593.
