QOLSYS IQ HARDWIRE 16-S
Featured Products

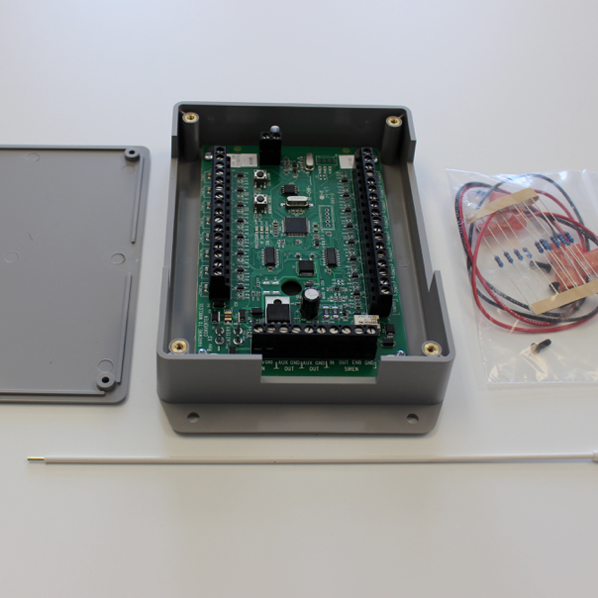

QOLSYS IQ HARDWIRE 16-S
IQ HARDWIRE 16-S

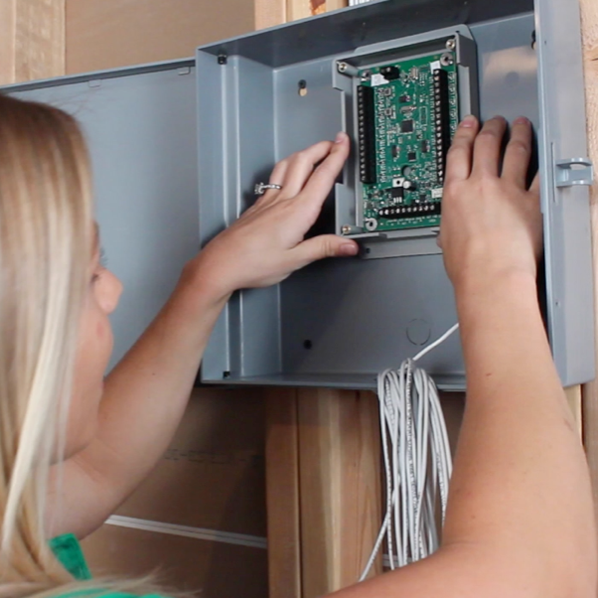

The IQ Hardwire 16 allows you to connect up to 16 hardwired zones wirelessly to the IQ Panel. Automatically learning the sensor’s resistor values, it’s easy to install and the perfect solution for existing systems or new construction.
Features:

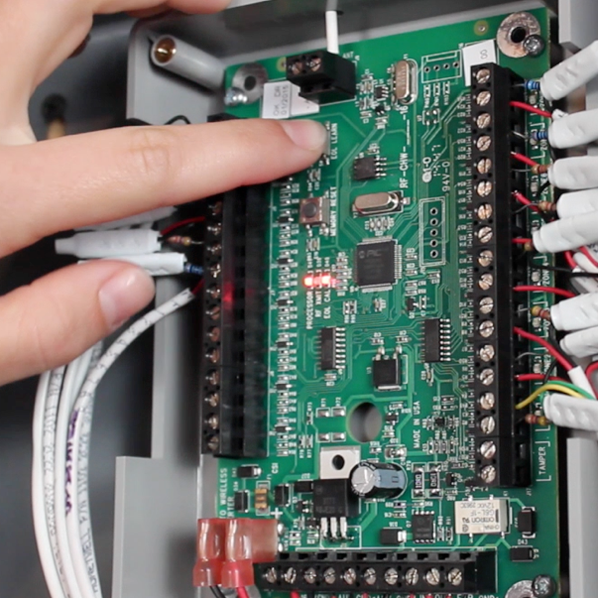

- LED lighted zones for ease of “learn-in” installation/troubleshooting
- EOL resistor learning supports 1-10K Ohm resistors.
- Up to 500 Milliamps of power for hardwired motion detectors, glass break detector, and/or sirens
- Charging circuit for back-up battery, fully supervised with power outage recover.
Specifications:
- Input Voltage: 16.0VDC Plug-In Transformer Backup Battery: 12VDC 5AH Max (optional) Dimensions: 5.5” X 3.5”
- Operating Temperature: 32 to 122F (0 to 50C) Humidity: 95% RH Max
- EOL Supervision: 1K to 10K Ohm
- Input Zones: 16 (must have resistor)
- Zone Type: N/O or N/C compatible
- Auxiliary Voltage Output: 12VDC @ 500mA
- Tamper Zone: Optional zone input for tamper
- Relay Contact: 60VDC/1A Max drives siren or other device
Qolsys IQ Hardwire 16 Quick Guide
Installation and service in North Carolina only.
Check out the Mobotix Cameras! Preprogramming can be done before shipping to site.
Replaces part #QOL-QS7121-840.

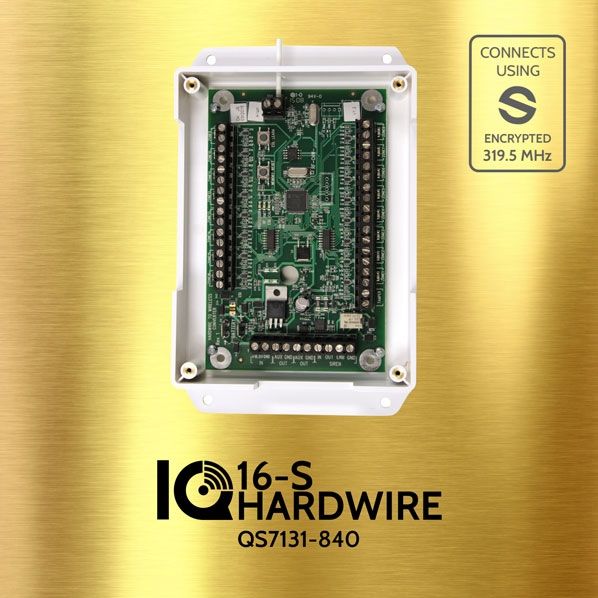

| Part # | QOL-QS7131-840 |
|---|---|
| MFR | QOLSYS |
IQ HARDWIRE 16-S
The IQ Hardwire 16 allows you to connect up to 16 hardwired zones wirelessly to the IQ Panel. Automatically learning the sensor’s resistor values, it’s easy to install and the perfect solution for existing systems or new construction.
Features:
- LED lighted zones for ease of “learn-in” installation/troubleshooting
- EOL resistor learning supports 1-10K Ohm resistors.
- Up to 500 Milliamps of power for hardwired motion detectors, glass break detector, and/or sirens
- Charging circuit for back-up battery, fully supervised with power outage recover.
Specifications:
- Input Voltage: 16.0VDC Plug-In Transformer Backup Battery: 12VDC 5AH Max (optional) Dimensions: 5.5” X 3.5”
- Operating Temperature: 32 to 122F (0 to 50C) Humidity: 95% RH Max
- EOL Supervision: 1K to 10K Ohm
- Input Zones: 16 (must have resistor)
- Zone Type: N/O or N/C compatible
- Auxiliary Voltage Output: 12VDC @ 500mA
- Tamper Zone: Optional zone input for tamper
- Relay Contact: 60VDC/1A Max drives siren or other device
Qolsys IQ Hardwire 16 Quick Guide
Installation and service in North Carolina only.
Check out the Mobotix Cameras! Preprogramming can be done before shipping to site.

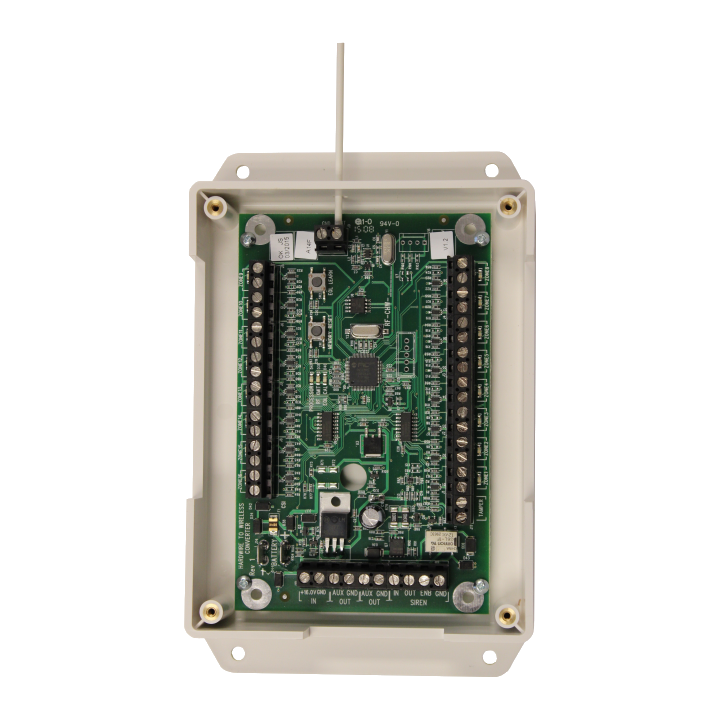

Replaces part #QOL-QS7121-840.
