MOBOTIX D16 6MP 180° DUAL DOME (x2 DAY) SECURITY CAMERA WITH MXBUS (NEW)

Mobotix DualDome Cameras

MOBOTIX D16 6MP 180° DUAL DOME (x2 DAY) SECURITY CAMERA WITH MXBUS (NEW)

Part # Mx-D16B-P-6D6D041 / MX-D16B-6D041 / Mx-O-SDA-P-6D6D
In Stock
$1,558.00
  • Buy 20 for $1,480.00 each and save 5%
- +

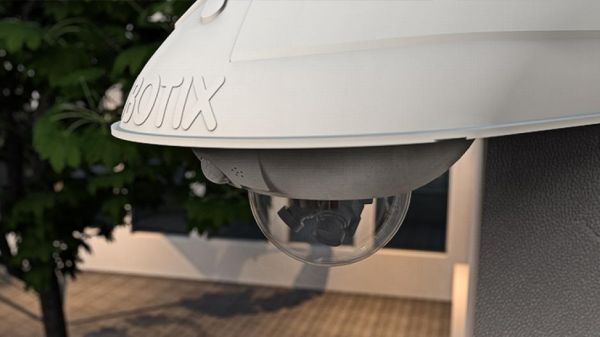

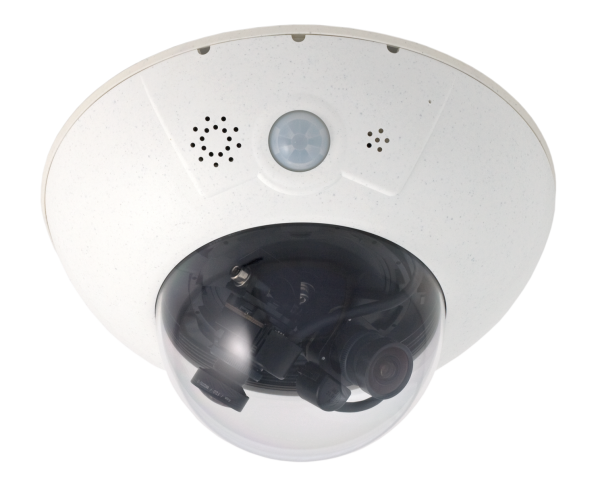

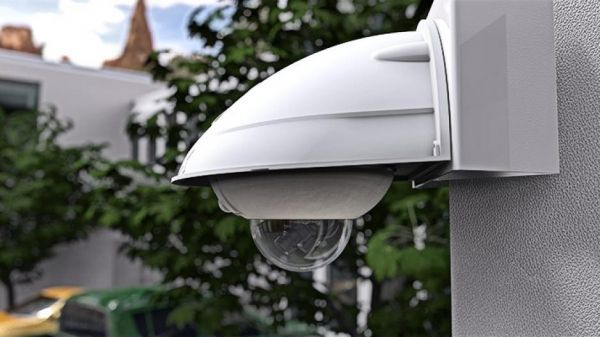

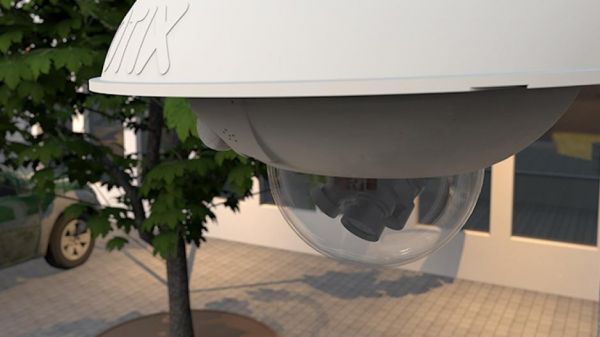

FixDome camera with two individually adjustable lenses and megapixel resolution. The elegant design is perfect for the discrete surveillance of buildings and facades. Standardly equipped with different lens combinations. Integrates all MOBOTIX functions.

The MxBus functionality, developed by MOBOTIX, makes it possible to connect additional modules, such as the Mx GPS box as a time server. MxBus helps achieve a complete all around video security system.

Includes:

  • Panorama/180° sensor bridge for D16/D15 Body, including two day sensors 6MP and a XL cover (MX-D15-DCT-XL)
  • Lenses included (two lenses B041 x2 Day for 180° panoramic image)

Advantages of the camera line Mx6

M16 AllroundDual, M16 Thermal/Thermal TR, S16 DualFlex, V16 Vandalism

  • Micro Processor: Dual Core
  • Image Sensors (2 x): 1/1.8“ CMOS, 6MP (3072 x 2048), Progessive Scan, color or B/W
  • Max. Image Size: 12 MP (2 x 6MP, 6144 x 2048 pixels)
  • Max. Frame Rate (MxPEG): 42@HD, 34@FullHD (1920 x 1080), 12@6MP, 6@2x 6MP
  • H.264 Hardware Codec: Yes, bandwidth adjustment possible; output format max. QXGA
  • ONVIF Support: Yes, full Profil S support with future software update
  • Multicast-Stream via RTSP: Possible with H.264, MxPEG and MJPEG
  • Multi-Streaming: Yes
  • Power supply: PoE, power supply typ. 5 watts
  • Mini USB Interface: Yes
  • Receive/Send MxMessages: Yes



Features:

  • IP camera module for connecting one or two D16/D15 sensor modules or a D16/D15 lens bridge FIX/PAN (to be ordered individually)
  • ONVIF-compliant Mx6 system platform (2nd generation) with H.264, MxPEG+ and M-JPEG
  • Image sensor options (via sensor module/bridge): 6 megapixels, color (day) and/or B/W (night)
  • Lens options (via lens unit): horizontal image angle from 103° to 15°
  • Max. image size (per image sensor): 6MP (3072 x 2048 pixels)
  • Operating conditions: IP54 without accessories, IP65/IK10 with Outdoor Wall Mount or IP66/IK10+ with Vandalism Set, each -40 to 60°C (-40 to 140°F)
  • Internal DVR: 4 GB MicroSD
  • Camera components: speaker, microphone, PIR sensor, temperature sensor, MxActivitySensor, shock detector
  • Ethernet patch cable 0.5 m/1.65 ft
  • Incl. 1x standard lens cover
  • Interfaces: Ethernet 10/100 (RJ45), MxBus, USB; IO and RS232 via additional MX Interface Box



Learn More

Installation and service in North Carolina only. Preprogramming can be done before shipping to site.

Additional Information
More Information
Part # Mx-D16B-P-6D6D041 / MX-D16B-6D041 / Mx-O-SDA-P-6D6D
MFR MOBOTIX
Details

FixDome camera with two individually adjustable lenses and megapixel resolution. The elegant design is perfect for the discrete surveillance of buildings and facades. Standardly equipped with different lens combinations. Integrates all MOBOTIX functions.

The MxBus functionality, developed by MOBOTIX, makes it possible to connect additional modules, such as the Mx GPS box as a time server. MxBus helps achieve a complete all around video security system.

Includes:

  • Panorama/180° sensor bridge for D16/D15 Body, including two day sensors 6MP and a XL cover (MX-D15-DCT-XL)
  • Lenses included (two lenses B041 x2 Day for 180° panoramic image)

Advantages of the camera line Mx6

M16 AllroundDual, M16 Thermal/Thermal TR, S16 DualFlex, V16 Vandalism

  • Micro Processor: Dual Core
  • Image Sensors (2 x): 1/1.8“ CMOS, 6MP (3072 x 2048), Progessive Scan, color or B/W
  • Max. Image Size: 12 MP (2 x 6MP, 6144 x 2048 pixels)
  • Max. Frame Rate (MxPEG): 42@HD, 34@FullHD (1920 x 1080), 12@6MP, 6@2x 6MP
  • H.264 Hardware Codec: Yes, bandwidth adjustment possible; output format max. QXGA
  • ONVIF Support: Yes, full Profil S support with future software update
  • Multicast-Stream via RTSP: Possible with H.264, MxPEG and MJPEG
  • Multi-Streaming: Yes
  • Power supply: PoE, power supply typ. 5 watts
  • Mini USB Interface: Yes
  • Receive/Send MxMessages: Yes



Features:

  • IP camera module for connecting one or two D16/D15 sensor modules or a D16/D15 lens bridge FIX/PAN (to be ordered individually)
  • ONVIF-compliant Mx6 system platform (2nd generation) with H.264, MxPEG+ and M-JPEG
  • Image sensor options (via sensor module/bridge): 6 megapixels, color (day) and/or B/W (night)
  • Lens options (via lens unit): horizontal image angle from 103° to 15°
  • Max. image size (per image sensor): 6MP (3072 x 2048 pixels)
  • Operating conditions: IP54 without accessories, IP65/IK10 with Outdoor Wall Mount or IP66/IK10+ with Vandalism Set, each -40 to 60°C (-40 to 140°F)
  • Internal DVR: 4 GB MicroSD
  • Camera components: speaker, microphone, PIR sensor, temperature sensor, MxActivitySensor, shock detector
  • Ethernet patch cable 0.5 m/1.65 ft
  • Incl. 1x standard lens cover
  • Interfaces: Ethernet 10/100 (RJ45), MxBus, USB; IO and RS232 via additional MX Interface Box



Learn More

Installation and service in North Carolina only. Preprogramming can be done before shipping to site.
