LINEAR DXR-701 1-CHANNEL DIGITAL RECEIVER
Remote
LINEAR DXR-701 1-CHANNEL DIGITAL RECEIVER
- Buy 2 for $90.00 each and save 10%
Linear DXR-701 Single Channel Digital Receiver DX Format.
The Model DXR-701 is a digital receiver with an isolated relay output designed for use with Linear’s DX Format transmitters. This receiver can be used in a variety of remote control applications. When the receiver detects a signal from a transmitter programmed into its memory, the relay output activates. The relay has four optional output configurations.

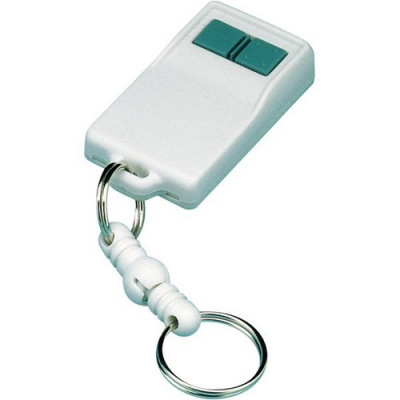

In a typical installation, the receiver is connected to an alarm control panel, door strike, camera, high current relay or some other device. A transmitter is used to activate or control the device. The receiver should be mounted with the supplied mounting bracket indoors or outdoors inside a weather resistant non-metallic housing.
Features:
- 32 transmitter capacity
- RF activity indicator
- Quick-learn programming
- Operates on 11-17 VDC or 12-16 VAC power
- One channel
- DX format
- One form “C” relay output
- One Amp contact rating @ 24 Volts AC/DC
- Selectable relay activation time
- Current consumption: 25 mA standby, 60 mA operating @ 12 VDC
- RF frequency: 315 MHz
- 5.5″ W x 4.0″ H x 1.25″ D
- Order number: SNR00148
Installation and service in North Carolina only.
Check out the Mobotix Cameras! Preprogramming can be done before shipping to site.
| Part # | LN-DXR701 / SNR00148 |
|---|---|
| MFR | LINEAR |
Linear DXR-701 Single Channel Digital Receiver DX Format.
The Model DXR-701 is a digital receiver with an isolated relay output designed for use with Linear’s DX Format transmitters. This receiver can be used in a variety of remote control applications. When the receiver detects a signal from a transmitter programmed into its memory, the relay output activates. The relay has four optional output configurations.
In a typical installation, the receiver is connected to an alarm control panel, door strike, camera, high current relay or some other device. A transmitter is used to activate or control the device. The receiver should be mounted with the supplied mounting bracket indoors or outdoors inside a weather resistant non-metallic housing.
Features:
- 32 transmitter capacity
- RF activity indicator
- Quick-learn programming
- Operates on 11-17 VDC or 12-16 VAC power
- One channel
- DX format
- One form “C” relay output
- One Amp contact rating @ 24 Volts AC/DC
- Selectable relay activation time
- Current consumption: 25 mA standby, 60 mA operating @ 12 VDC
- RF frequency: 315 MHz
- 5.5″ W x 4.0″ H x 1.25″ D
- Order number: SNR00148
Installation and service in North Carolina only.
Check out the Mobotix Cameras! Preprogramming can be done before shipping to site.
