IQ HARDWIRE 8-S
The IQ Hardwire 8 allows you to connect up to 8 hardwired zones wirelessly to the IQ Panel. Automatically learning the sensor’s resistor values, it’s easy to install and the perfect solution for existing systems or new construction.
Translates 8 Hardwire Zones to 8 Qolsys Wireless (319.5 MHz). Learns existing EOL resistors, backup battery charging. Includes transformer.

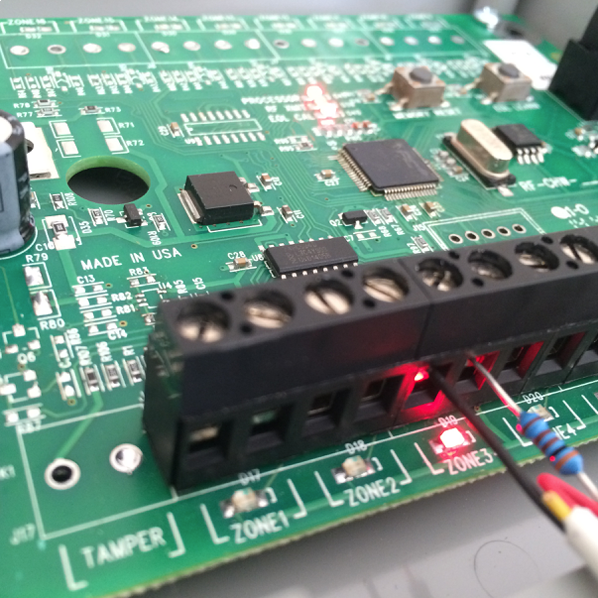

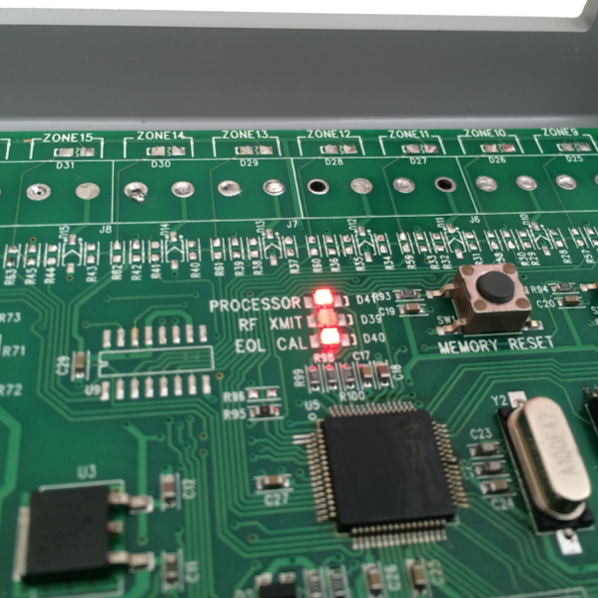

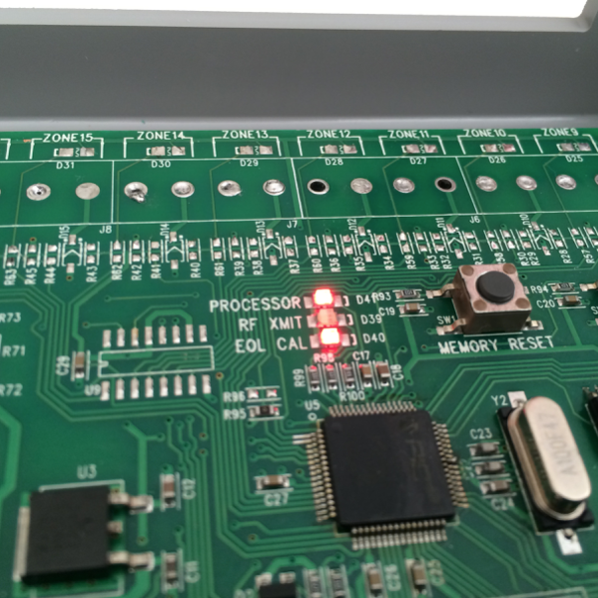

- LED lighted zones for ease of “learn-in” installation/troubleshooting
- EOL resistor learning supports 1-10K Ohm resistors.
- Input Voltage: 16.0VDC Plug-In Transformer
- Backup Battery: 12VDC 5AH Max (optional)
- Dimensions: 5.5” X 3.5”
- Operating Temperature: 32 to 122F (0 to 50C)
- Humidity: 95% RH Max
- EOL Supervision: 1K to 10K Ohm
- Input Zones: 8 (must have resistor)
- Zone Type: N/O or N/C compatible
Qolsys IQ Hardwire 8 Quick Guide
Installation and service in North Carolina only.
Check out the Mobotix Cameras! Preprogramming can be done before shipping to site.
Replaces part #QOL-QS7120-840.
