Security Systems


Product Number: QOL-QS1230-840
Availability: In Stock

Availability: In stock

Regular Price: $85.99

Special Price: $71.99

Special Price:

  • Buy 2 for $69.00 each and save 5%
  • Buy 5 for $67.00 each and save 7%
  • Buy 10 for $65.00 each and save 10%

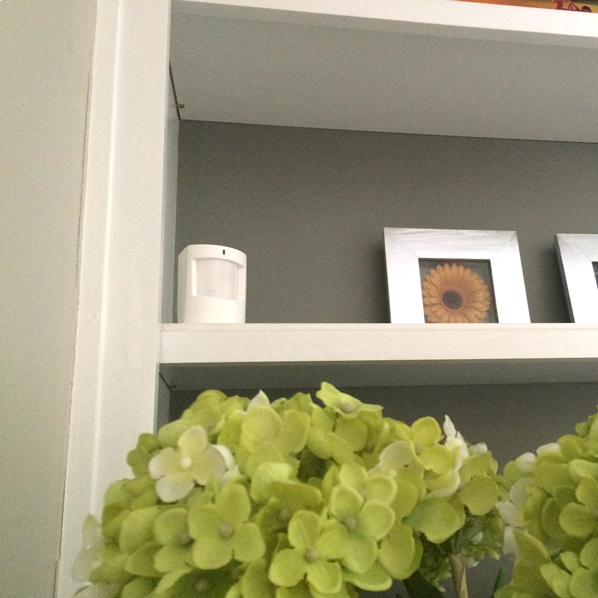

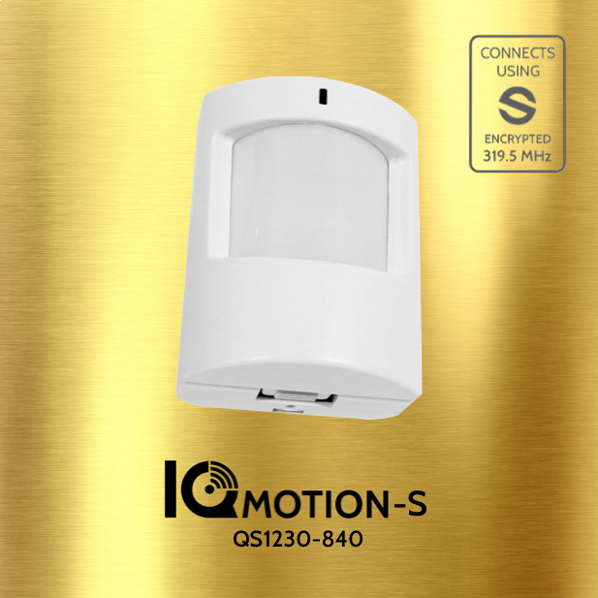

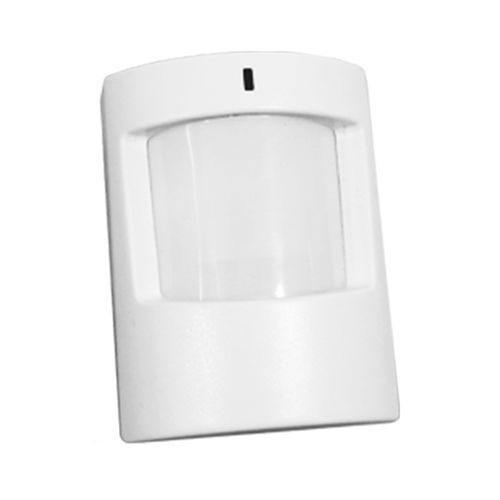

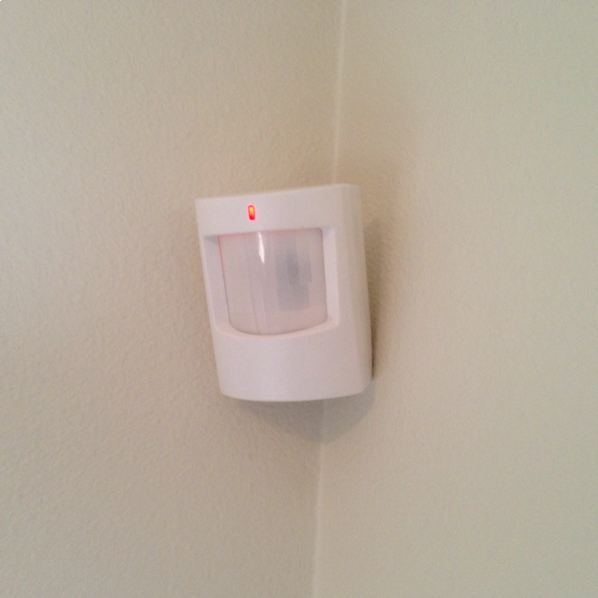

The IQ Motion-S is an encrypted PIR that is as powerful as it is affordable. Leveraging our proprietary S-Line Technology it encrypts signals sent to the IQ panel while still providing support for legacy 319.5 systems. Pet immune up to 40 pounds, the IQ Motion-S is designed to mount on a flat surface or in a corner, and at a variety of angles.


  • Encrypted S-Line sensor technology protects signals sent to the IQ Panel while still providing support for legacy 319.5 systems

  • Provides security coverage up to 35’ in a large open area

  • Use to create rules such as “When someone enters the room, turn on light” or “Trigger siren when intruder detected”

  • Pet immune up to 40 lbs


  • Code outputs: paring, tamper, tamper restore, alarm detect motion, alarm restore, supervisory, low battery

  • Transmitter frequency: 319.5MHZ +-15KHz

  • Transmitter bandwidth: 24KHZ

  • Modulation type: ASK-OOK

  • RF output power 91.1dBuV +/- 5% at 3m

  • Sensor Range 30 ft (9.1 m) x 50 ft (15.2 m)

  • Maximum Horizontal Sensing Angle 80°

Learn More

Qolsys IQ Motion-S Quick Guide

Installation and service in North Carolina only.

Check out the Mobotix Cameras!  Preprogramming can be done before shipping to site.

Part # QOL-QS1230-840
